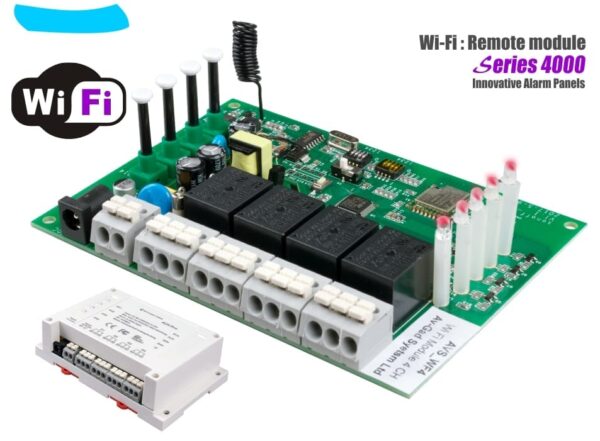

WiFi Controller 4 Functions & App for alarm remote control
Expansion module enables WiFi remote control
Designed for Av-Gad Series 4000 controls
Wi-Fi Controller also applicable for other on/off functions by relays
Including four functions that user selects
Examples: system arming, stop sirens, zone bypass, panic activation
Controller with 4 remote controlled ports
With a test switch for each controller operation
Includes a RF wireless remote control
RF remote with identical actions when WiFi network is not available
The remote controller can switch additional accessories
Programmable 3 working modes: Momentary, Self-Locking, Interlock
Includes 1 to 4 seconds of self-locking
Each relay port has 3 contacts
Controlled from an app on a mobile phone
Mobile application for Android and iOs
Requires internet with wireless route
Code Connection Protection
Each port has a LED light to control

Remote Control
Alarm functions: Arm, disarm, dialer stop, zone bypass, siren stop
Four functions via Wi-Fi and/or RF
RF radio remote control included

Technical
Input voltage: 12 to 24 volts DC
Standby current consumption: 120 mA
Enclosure: ABS plastic
Remote control: WiFi network domain 2.4 GHz
Wireless Standard: 802.11 b/g/n
Local control: Wireless remote control, button switch
Remote control: 4 buttons
Remote Control Receiver: Learn mode RF, 433 MHz
Number of channels: Four, each has relay output
Channel modes: Three modes
Timer: Built-in
Outputs: 4 dry contact relay
Relay output: 3 contacts, 10A DC @ 24V
Installation: DIN or 4 screws
Working temperature: 0 to 60° Celsius (32-140°F)
Dimensions PCB only: 121 x 82 mm (4.76 x 3.22″)
Dimensions case: 141 x 89 x 38 mm
