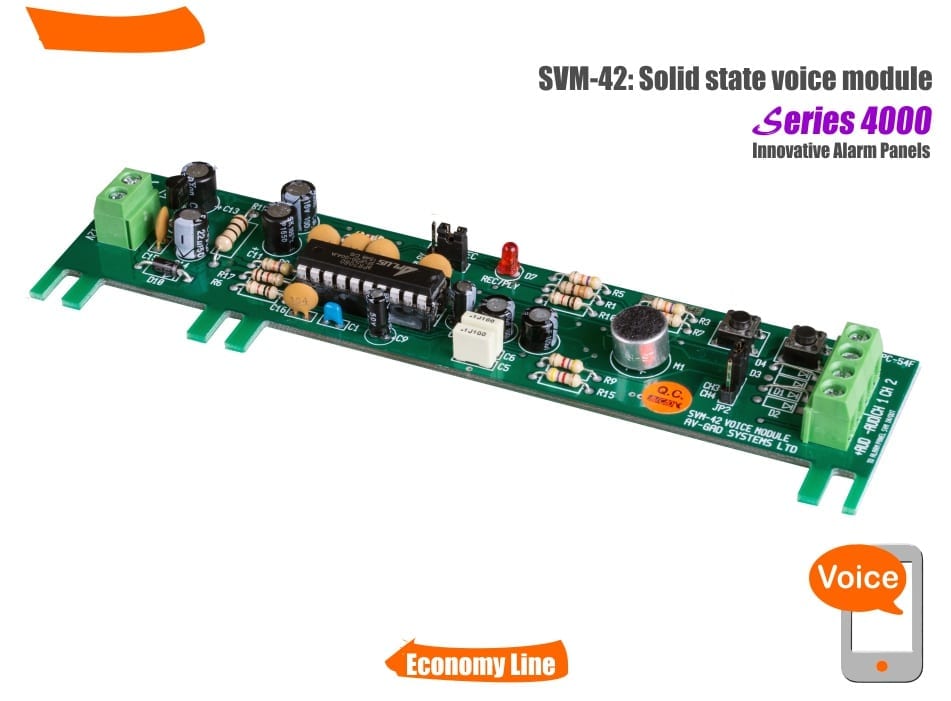

Voice message for alarm panel & dialer


Voice message for alarm panel & dialer

Voice message module for alarm panels with none volatile memory
Electronic stand-alone voice messaging module
High quality voice broadcasting
Voice module allows recording and playback of two messages
Latest solid state technology stores recording without power
User records his message via built-in microphone
Records one or two voice messages or music
Message recorded to a specific channel; 1 or 2 or one long message
Trig for playback the message by apply -V
Separated trig for play back for each channel
Record and Play Push Buttons for Simple Operation
The total message length is 40 seconds
Very low current consumption
With Audio terminal output
With on board Play/Record selector
Compatible with all EasyLoader Alarm Panels and dialers
Replace old audio tape to record and play the messages
Used as a digital message source in Av-Gad alarm control panels
The alarm panel dials than play the record on the receiver side
In fire systems used as voice evacuation message

SKU: SVM-42 e

Voice message for alarm panel & dialer

Voice message module for alarm panels & dialer with none volatile memory
Electronic stand-alone voice messaging module
High quality voice broadcasting
Voice module allows recording and playback of two messages
Latest solid state technology stores recording without power
User records his message via built-in microphone
Records one or two voice messages or music
Message recorded to a specific channel; 1 or 2 or one long message
Trig for playback the message by apply -V
Separated trig for play back for each channel
Record and Play Push Buttons for Simple Operation
The total message length is 40 seconds
Very low current consumption
With Audio terminal output
With on board Play/Record selector
Compatible with all EasyLoader Alarm Panels and dialers
Replace old audio tape to record and play the messages
Used as a digital message source in Av-Gad alarm control panels
The alarm panel dials than play the record on the receiver side
In fire systems used as voice evacuation message

Main Features

Simple to record message in any language
Supports one or two messages
Quality voice output
Stores messages after power cut

Technical

Auxiliary power: 12V
Standby Power Consumption: 3 mA, +/- 10 %
Operating Power Consumption: 40 mA
Voice memory: None volatile
Message Duration: 40 seconds
Wiring: Screws terminal block
Record/Play mode: On board jumper
Record/Play triggers: On board switch
Common input: -V
Working temperature: 0 to 60° Celsius (32-140°F)
Dimensions PCB only: 121 x 82 mm (4.76 x 3.22″)
Enclosure: None
Dimensions (printed board): 158 X 32 mm
