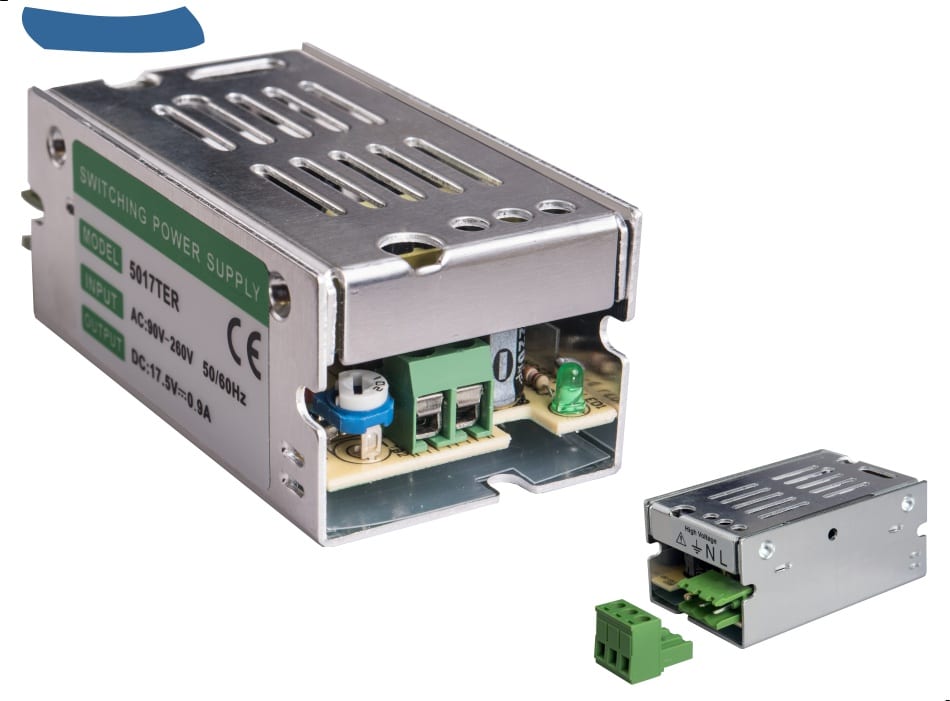

Mini Power Supply Switching type
Mini Power Supply for Av-Gad alarm panels
Switching mode power supply for alarm and LEDs
Enclosed in metal light Aluminium enclosure
Power Supply provides 17V DC at 1A (17W)
For alarm system and access control
Customization to any voltage from 8 to 22V is possible
Replaces older Av-Gad transformer model 5003TER
Fits into Av-Gad alarm panels ABS enclosures
Has higher efficiency than AC transformer
AC input is protected by glass fuse
LED indicator lights when DC output is on
Mini size, low weight power supply
Saves on international shipping (export orders)
AC power interfacing via plugable wires terminal
Voltage fine tune trimmer to adjust voltage
Metal enclosure with ground terminal
Improved EMI and RFI protection
Designed for indoor applications
Benefits to the installer
Tiny size
Protects against power fail
High efficiency compared to AC transformer
Suitable for Av-Gad alarm systems
Technical details
Output voltage: 17 DC volts, +/- 5%
Output current: 1A Max.
Channels: One
Input voltage: 110 to 220 AC volts
Connections: Plugable terminal wires AC side
Efficiency: 81%
Protection: Fuse, EMI filter, RF filter
Charger: None
Operating temperature: -20 to +60ºC (-4 to 140ºF)
Enclosure: Metal
Dimensions: 70 x 39 x 31 mm (2.75 x 1,54 x 1.22″)
