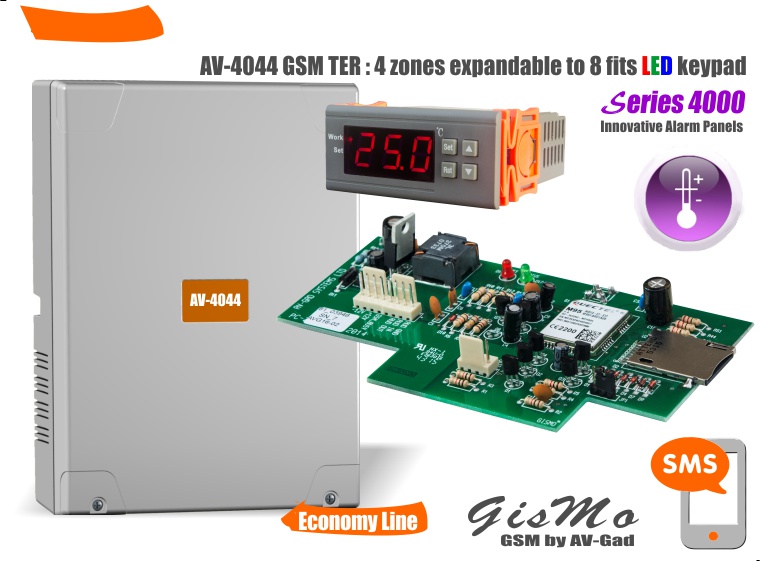

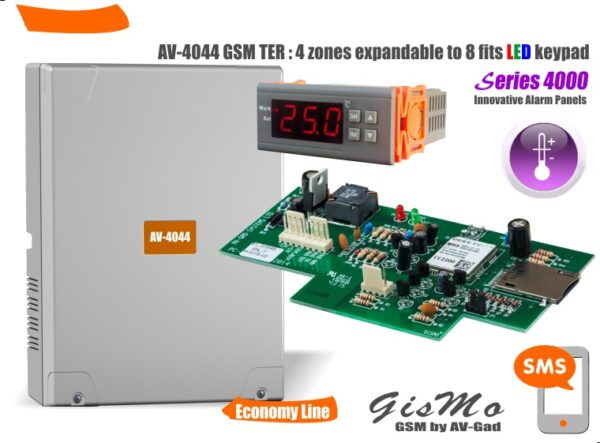

GSM Temperature Alert AV4044GSM_TER


GSM Temperature Alert

Temperature Alert via GSM
Temperature Alert Panel with integrated GSM reporter
Temperature alert with digital electronic thermostat TER-12
TER-12 is an electronic thermostat for range -40 to + 60º C
Supports up to four TER-12 thermostats different alarm temperature
Fits server rooms, refrigerators, freezers, laboratories
GSM Temperature Alert is ideal for food stores and supermarkets
Build-In AC monitor with programmable timer
Integrated sounder output for siren and strobe light

SKU: AV4044GSM_TER e

GSM Temperature Alert

Temperature Alert via GSM
Temperature Alert Panel with integrated GSM reporter
Temperature alert with digital electronic thermostat TER-12
TER-12 is an electronic thermostat for range -40 to + 60º C
Supports up to four TER-12 thermostats different alarm temperature
Fits server rooms, refrigerators, freezers, laboratories
GSM Temperature Alert is ideal for food stores and supermarkets
Build-In AC monitor with programmable timer
Integrated sounder output for siren and strobe light
Four inputs expandable to 8 on board with resistors
Select GSM or PSTN via programming
High reliability, friendly and simple programming
Compatible with Av-Gad LED Keypads
High quality GSM module with SIM card GisMo series
Sends temperature alert events for each device as SMS to mobile
Send SMS message with alarm input description: Temperature Alert Alarm
Send SMS for system fail like: AC fail, Low Battery… and more
Dialer for 6 numbers, with or without vocal message plus Follow-Me feature
Supplied in ABS box (optional metal box)
Fits 4-Wires LED Keypads: AV-701, AV-702

Technical
On-board zones: Four inputs expandable
Expandable: 8 inputs
PGM outputs: 2
Siren output: One fused
Keypad: Digital LED AV-701 or AV-702
Keypads support: 4
Remote key: RF or Key Switch
Remote arm/disarm: Optional
Communication: PSTN and GSM
Central station reporting: Contact ID to 1-2 centers
Expand to GSM: GisMo module
Smoke reset: Not available
Events buffer: 250
User codes: 32
Operating temperature: -20 to +60º C
Enclosure: ABS box
Dimensions: 23 X 31 X 9 cm (9” X 12 1/4” X 3 1/2)

Technical – Four zones expandable GSM Alarm

On-board zones: 4
Expandable: 8 hardwired zones
PGM outputs: 2
Siren output: One fused
Keypad: Digital LED
Keypads support: 4
Remote key: RF or Key Switch
Remote arm/disarm: Mobile DTMF
Remote Wi-Fi arming: Optional with AVSWF4
Communication: PSTN and GSM
Central station reporting: Contact ID to 1-2 centers
Expand to GSM: GisMo module
Voice message: Optional by SVM
Smoke reset: Not available
Events buffer: 250
User codes: 34 plus codes locker
Operating temperature: -20 to +60º C
Enclosure: ABS box
Dimensions: 23 X 31 X 9 cm (9” X 12 1/4” X 3 1/2)
