Security Military Control Panel AV4009ELT


Security Military Control Panel 8 zones

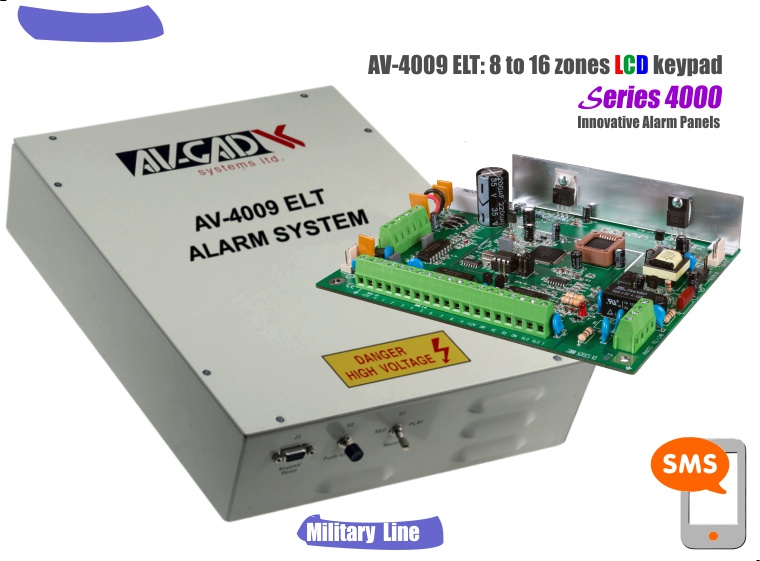

Eight zones control panel AV-4009ELT
Alarm Panel with integrated PSTN dialer & SMS reporter
Series 4000 Military Control Panel 8 zones for LCD keypad
Professional level expandable Control Panel
Compatible with Av-Gad LCD Keypads
Unique alarm panel for military and high security
intrusion detection applications
Manufactured under MIL specifications
Military Version Control Panel enclosed in smart rack Aluminum mount box
With Voice Module and Internal Siren
All Wiring via Connectors for Fast Plug & Play Service
System replacement within few minutes
Meet the essential requirements and is in conformity EN50131 grade IV
With space and changing for SLA 12V – 7 or 9 A/H
Powered by 115-220V AC

SKU: AV4009ELT

Security Military Control Panel 8 zones

Security Military Control Panel 8 zones model AV-4009ELT
Alarm Panel with integrated PSTN dialer & SMS reporter
Series 4000 Military Control Panel 8 zones for LCD keypad
Professional level expandable Control Panel
Compatible with Av-Gad LCD Keypads
Unique alarm panel for military and high security
intrusion detection applications
Manufactured under MIL specifications
Military Version Control Panel enclosed in smart rack Aluminum mount box
With Voice Module and Internal Siren
All Wiring via Connectors for Fast Plug & Play Service
System replacement within few minutes
Meet the essential requirements and is in conformity EN50131 grade IV
With space and changing for SLA 12V – 7 or 9 A/H
Powered by 115-220V AC

Quality high-end alarm system with extreme flexibility features
Supports up to 32 user codes, installer code, access control code
Generation IV alarm panel with enhanced processing unit
Build in modem for remote programming
Programmable auto arming by day and time
Daily testing signal to central station
Set pulse count for each zone
Compatible with EasyLoad PC software
High reliability, friendly and simple programming via keypad or PC
Remote Up and Download via modem or AV-232

Applications sites samples

Radar stations
Military intelligent trailers
National security
Missiles stations

Dialer & Communicator

Dials to 6 numbers via PSTN
SMS via PSTN to 4 numbers
One Follow Me number
Dials to 2 different central stations in Contact ID
Ready for GisMo GMS module
Supports central station SMS reporting

Remote Control

DTMF control via mobile: Arm, disarm, dialer stop, zone bypass, alarm status
EasyLoad software
Optional RF radio remote control

Technical

On-board zones: 8
Expandable: Optional by 8 zones add AV-218
PGM outputs: 4
Siren output: Two fused
Keypad compatibility: AV-707ELT
Keypads support: 2
Remote key: RF or Key Switch
Remote arm/disarm: Mobile DTMF
Remote Wi-Fi arming: Optional with AVSWF4
Communication: PSTN and GSM
Central station reporting: Contact ID to 1-2 centers
Expand to GSM: GisMo module
Voice message: Optional by adding SVM voice module
Smoke reset: Not available
Events buffer: 250
User codes: 32 codes, 1 programming code, 1 access control code
Auxiliary power: None
Operating temperature: -40 to +70º C
Enclosure: Special Aluminium box
Enclosure dimensions: 80 x 275 x 330 mm
