Indoor Alarm & Smoke Detectors
Humidity & Temperature controller
Humidity & Temperature controller
Humidity and temperature controller indoor or outdoor
One unit integrates Humidity and temperature controller
Electronic hygrometer programmable
Includes alarm setting for humidity and temperature level
Temperature units in Celsius or Fahrenheit
Hygrometer for communication rooms, computer rooms, incubators
Suitable for humidity control in the agricultural and industrial sector
Enables clear reading on a dual digital display
Programming setting keys for temperature & humidity
Microprocessor and analog processor based
Required in medicine rooms, seed coolers, laboratories
Useful for early detection of humidity in galleries and museums
Hygrometer for cold rooms, archives, habitats
Siren activated when detecting high or low temperature, or humidity
Also optional connected to a telephone dialer, cellular dialer
Relay output that is activated when humidity or temperature changes

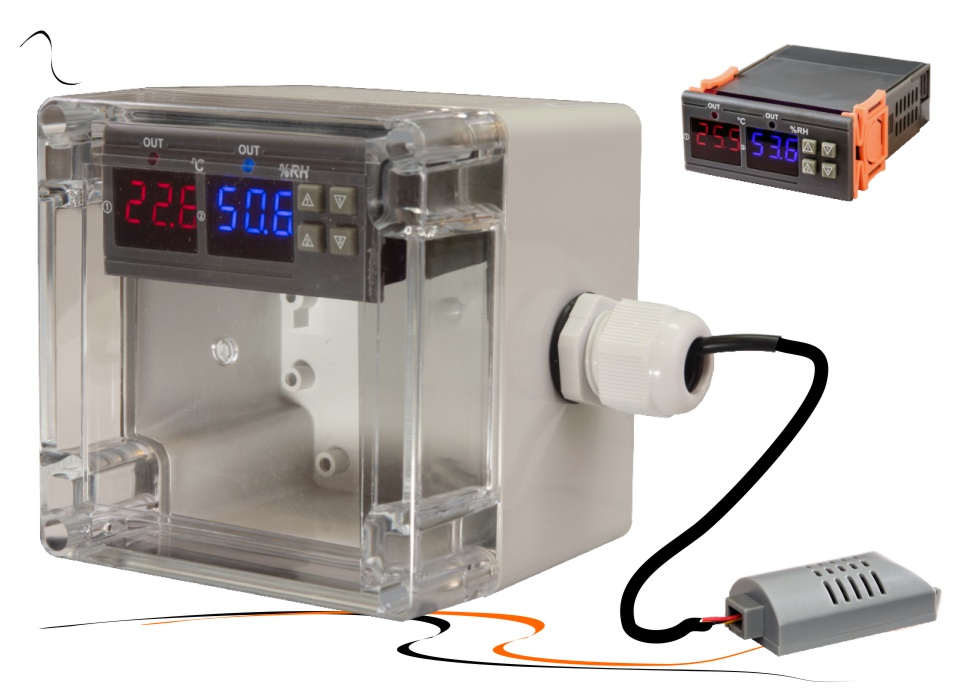

Designed for installation for indoor or outdoor (in sealed box)
Can be integrated into an alarm or fire system
Option: In a sealed box or with control system
automatic dialer or cellular alert like the AV-4008
SKU: TER_HA3 e, TER_HA3B1
Humidity & Temperature controller
Humidity and temperature controller indoor or outdoor
One unit integrates Humidity and temperature controller
Electronic hygrometer programmable
Includes alarm setting for humidity and temperature level
Temperature units in Celsius or Fahrenheit
Hygrometer for communication rooms, computer rooms, incubators
Suitable for humidity control in the agricultural and industrial sector
Enables clear reading on a dual digital display
Programming setting keys for temperature & humidity
Microprocessor and analog processor based
Required in medicine rooms, seed coolers, laboratories
Useful for early detection of humidity in galleries and museums
Hygrometer for cold rooms, archives, habitats
Siren activated when detecting high or low temperature, or humidity
Also optional connected to a telephone dialer, cellular dialer
Relay output that is activated when humidity or temperature changes
Designed for installation for indoor or outdoor (in sealed box)
Can be integrated into an alarm or fire system
Option: In a sealed box or with control system
automatic dialer or cellular alert like the AV-4008
Main Features
Large and vivid display
Accuracy for RH 3% at 25ºC
Economical, measures 2 parameters
Dry contacts Relay Insure great compatibility
Easy and Fast installation
Technical
Remote Sensor: RHT with 100 cm (3.23 feet) cable
Processor: Micro controller
Operating Voltage: 9 to 16V DC
RF Immunity: From 50 KHz to 1 GHz @ 50V/m.
Current Draw Active: 22 mA
Current Draw Standby: 8 mA
Alarm relay: Dry contact
Alarm Contacts: 10A @ 24V DC, N.C. or N.O
Tamper Contacts: None
Humidity measurement range: 0 to 99%
Humidity measurement error: ± 3% at 25ºC
Temperature measurement range: -20 to 80°C
Remote Sensor Type: NTC (10K/3435) 100 cm wire (3.23 feet)
Accuracy: 1 deg Celsius
Limits: Upper and lower temperature limits are programmable
Opacity level: IP-30
Operating Temperature: -10 to +50ºC (+14 to +122ºF)
Dimensions: 75 x 35 and 82 mm deep (3.0 x 1.4 and 3.2“ deep)
Dimensions (TER_HA3B1): 103 X 103, deep 90 mm
