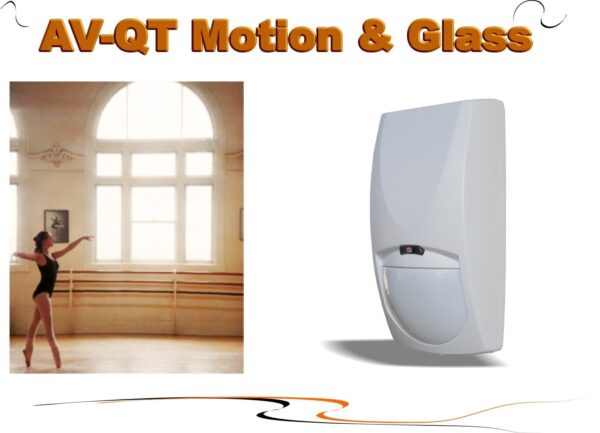

PIR Motion & Glass Break Detector AV-QT


PIR Motion & Glass Break Detector

PIR Motion & Glass Break Detector combined in one unit
Dual technology PIR motion plus Glass Break detector
PIR with Digital ASIC chip plus Analog Channel
Pet immunity to 25 Kg (55 lbs) pets
Advanced Quad Pyro Sensor for PIR
Includes digital PIR motion & Glass break detector
High sensitivity Piezo Electric Glass Break Sensor
Spherical Fresnel Hard lens with Creep Zone
Lens with Anti-Halogen layer prevents false alarm
Integrated Sealed Optics with hard lens
PIR Covering up to 12 meters (Height=2.40M) at 20° C
Extreme False Alarms Immunity
Accurate Temperature Compensation (+/- 0.2° C)
Adjustable Pulse Count
Sensitivity Fine Tuning Trimmer

SKU: AV-QTe

PIR Motion & Glass Break Detector

PIR Motion & Glass Break Detector combined in one unit
Dual technology PIR motion plus Glass Break detector
PIR with Digital ASIC chip plus Analog Channel
Pet immunity to 25 Kg (55 lbs) pets
Advanced Quad Pyro Sensor for PIR
Includes digital PIR motion & Glass break detector
High sensitivity Piezo Electric Glass Break Sensor
Spherical Fresnel Hard lens with Creep Zone
Lens with Anti-Halogen layer prevents false alarm
Integrated Sealed Optics with hard lens
PIR Covering up to 12 meters (Height=2.40M) at 20° C
Extreme False Alarms Immunity
Accurate Temperature Compensation (+/- 0.2° C)
Adjustable Pulse Count
Sensitivity Fine Tuning Trimmer
Digital Pulse Count– Single or Triple Pulses
MOS Solid state relay ensure reliability & Silent (no clicks)
Durable and compact 3 mm thick ABS housing
Fully Computerized Quality Control Testing
High Immunity to RFI, EMI & Halogen light

Main Features
Dual Tech Combined PIR & Glass Break sensors
Simple tune for each sensor
Separate Relays for PIR & Glass Detectors
Save place, instillation time and funds
Effective alarm detector
Quad high quality Pyro & Glass sensors
Option: Swivel bracket
Immunity to small animals and pets up to 25 Kg (55 lbs) weight.
Easy and Fast installation

Technical
Sensor: Quad Element Pyro
Glass Break Sensor: Piezo Electric
Processor: Digital ASIC with analog channel
Operating Voltage: 8.4 to 16V DC
RF Immunity: From 50 KHz to 1 GHz @ 50V/m.
Current Draw Active: 35 mA
Current Draw Standby: 16 mA
Alarm relay: Solid State MOS (two relays)
Alarm Contacts: 0.1A @ 24V DC, N.C.
Tamper Contacts: 0.5A @ 24V DC, N.C.
Range: 8 meters +/- 1M @ 20 º C, @ 2.40M high
Glass Break range 7-10 meters
Detection: Two steps walk at 1m/sec
Indicators: Red LED for alarm
Optical Filtering: White light by pigmented lens
Warm Up Period: 60 seconds
Temperature Compensation: Automatically
Operating Temperature: -10 to +30ºC (+14 to +86ºF)
Size without swivel: 115 x 61 x 37.5 mm
