Digital Quad Pet PIR Motion Detector


Digital Quad Pet PIR Motion Detector

Digital Quad Pet PIR Motion Detector within

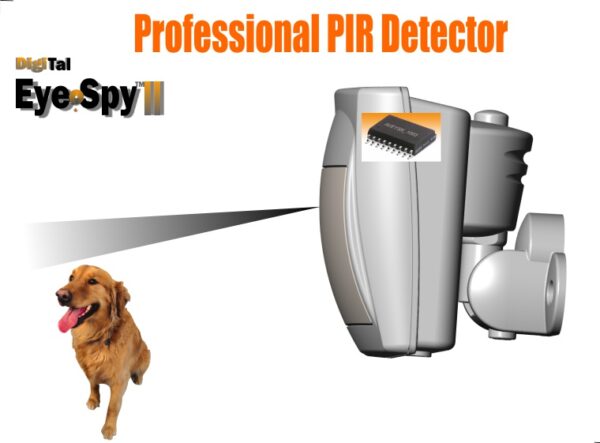

Eye Spy II Pet professional PIR detector
Supplied with swivel bracket
Pet immune for – Two modes 18 or 36 kg
PIR with Digital ASIC chip plus Analog Channel
Latest Quad Pyro Sensor wide temperature range
Spherical Fresnel Hard lens with Creep Zone
Lens with Anti-Halogen layer prevents false alarm
Integrated Sealed Optics with hard lens
Covering up to 12 meters (Height=2.40M) at 20° C
Extreme False Alarms Immunity
Accurate Temperature Compensation (+/- 0.2° C)
Adjustable Pulse Count

SKU: EYS2PET_e

Digital Quad Pet PIR Motion Detector

Digital Quad Pet PIR Motion Detector within
Eye Spy II Pet professional PIR detector
Supplied with swivel bracket
Pet immune for – Two modes 18 or 36 kg
PIR with Digital ASIC chip plus Analog Channel
Latest Quad Pyro Sensor wide temperature range
Spherical Fresnel Hard lens with Creep Zone
Lens with Anti-Halogen layer prevents false alarm
Integrated Sealed Optics with hard lens
Covering up to 12 meters (Height=2.40M) at 20° C
Extreme False Alarms Immunity
Accurate Temperature Compensation (+/- 0.2° C)
Adjustable Pulse Count
Sensitivity Fine Tuning Trimmer
Digital Pulse Count– Single or Triple Pulses
MOS Solid state relay ensure reliability & Silent (no clicks)
Durable and compact 3 mm thick ABS housing
Fully Computerized Quality Control Testing
High Immunity to RFI, EMI & Halogen light
Swivel Bracket with wiring tunnel

Main Features Eye Spy II Pet
False alarm free PIR for Pet
Dedicated Qua Pyro for low temperature
Reliable passive infrared sensor
Advanced hard lens optics
Solid-State Relay Insure Quiet Operation and Extreme Reliability
Professional Swivel Bracket with cable channel
Built-In Tamper Switch, pending EN 50130, EN 50131
Easy and Fast installation

Technical
Sensor: Quad HD Element Pyro
Processor: Digital ASIC with analog channel
Operating Voltage: 8.4 to 16V DC
RF Immunity: From 50 KHz to 1 GHz @ 50V/m.
Current Draw Active: 24 mA
Current Draw Standby: 7 mA
Alarm relay: Solid State MOS
Alarm Contacts: 0.1A @ 24V DC, N.C.
Tamper Contacts: 0.5A @ 24V DC, N.C.
Range: 12 meters +/- 1M @ 20 º C, @ 2.40M high
Detection: Two steps walk at 1m/sec
Swivel Bracket Adjustment Horizontal (tilt): +/- 25º. Vertical (pan): +5º, -15º
Indicators: Red LED for alarm
Optical Filtering: White light by pigmented lens
Warm Up Period: 60 seconds
Operating Temperature: -30 to +30ºC (-22 to +86ºF)
Storage temperature: -30 +60ºC (-22 to +140ºF)
Temperature Compensation: Automatically
Size without swivel: 77 x 66 x 39 mm (3.0 x 2.6 x 1.5“)
