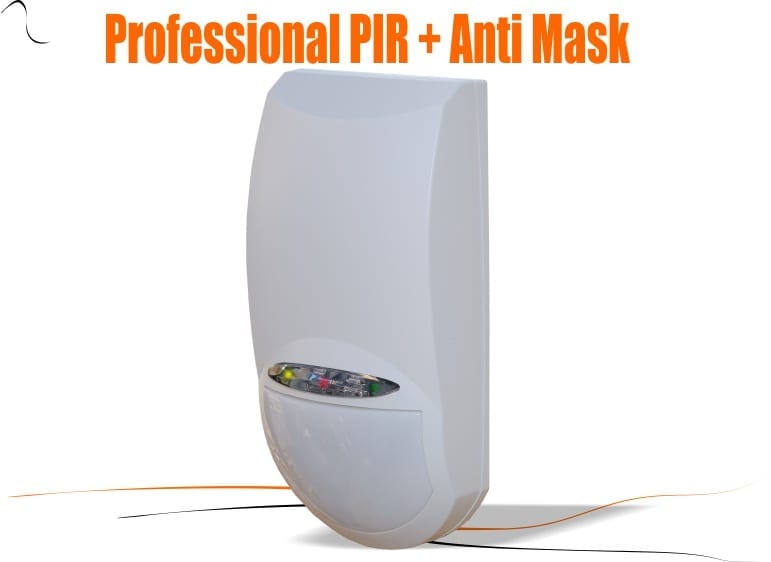

Anti Mask PIR Detector AVQ_AM


Anti Mask PIR Detector

Anti Mask PIR Detector with digital ASIC processor
Dual technology PIR with anti mask
PIR with Digital ASIC chip plus Analog Channel
Pets immunity to 25 Kg (55 lbs) in weight
Indoor advanced Dual Technology PIR with anti mask protection
Advanced Quad Pyro Sensor for PIR
Spherical Fresnel Hard lens with Creep Zone
Prevents false alarm lens with Anti-Halogen layer
Integrated Sealed Optics with hard lens
PIR Covering up to 12 meters (Height=2.40M) at 20° C
Extreme False Alarms Immunity
Accurate Temperature Compensation (+/- 0.2° C)
Adjustable Pulse Count
Sensitivity Fine Tuning Trimmer

SKU: AVQ_AMe

Anti Mask PIR Detector

Anti Mask PIR Detector with digital ASIC processor
Dual technology PIR with anti mask
PIR with Digital ASIC chip plus Analog Channel
Pets immunity to 25 Kg (55 lbs) in weight
Indoor advanced Dual Technology PIR with anti mask protection
Advanced Quad Pyro Sensor for PIR
Spherical Fresnel Hard lens with Creep Zone
Prevents false alarm lens with Anti-Halogen layer
Integrated Sealed Optics with hard lens
PIR Covering up to 12 meters (Height=2.40M) at 20° C
Extreme False Alarms Immunity
Accurate Temperature Compensation (+/- 0.2° C)
Adjustable Pulse Count
Sensitivity Fine Tuning Trimmer
Digital Pulse Count– Single or Triple Pulses
MOS Solid state relay ensure reliability & Silent (no clicks)
Durable and compact 3 mm thick ABS housing
Fully Computerized Quality Control Testing
High Immunity to RFI, EMI & Halogen light

AVQ_AM Main Features
Combined PIR & Optical Mask sensors
PIR with fine sensitivity tune
Separate Relays for PIR & Masking
Save place, instillation time and funds
Effective alarm detector
Quad high quality PIR detector
Option: Supplied with swivel bracket
Easy and Fast installation

What is anti mask feature?
Anti-mask is a motion detector’s ability to detect if an intruder has
attempted to defeat the detector by blocking (masking) it with a material
that blocks infrared energy, such as paper, tape, film, or spray.

Technical
Sensor: Quad Element Pyro
Masking sensor: Optical
Processor: Digital ASIC with analog channel
Operating Voltage: 8.4 to 16V DC
RF Immunity: From 50 KHz to 1 GHz @ 50V/m.
Current Draw Active: 35 mA
Current Draw Standby: 16 mA
Alarm relay: Solid State MOS (two relays)
Alarm Contacts: 0.1A @ 24V DC, N.C.
Tamper Contacts: 0.5A @ 24V DC, N.C.
Range: 8 meters +/- 1M @ 20 º C, @ 2.40M high
Glass brake range 7-10 meters
Detection: Two steps walk at 1m/sec
Indicators: One LED Alarm
Optical Filtering: White light by pigmented lens
Warm Up Period: 60 seconds
Temperature Compensation: Automatically
Operating Temp: -25 to +40 C°(-13 to 104° F)
Dimensions: 115 x 61 x 37.5 mm
