Professional relays module

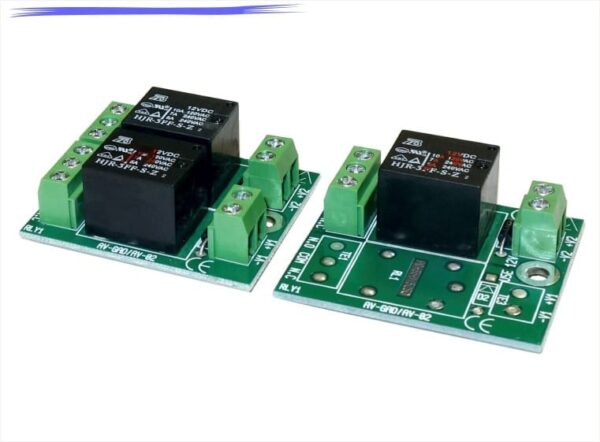

Professional relays module AV01, AV02

Professional relays module for alarm and other applications
High quality relays module dedicated for alarm panels
Each relays is protected against high voltage spikes
Professional relays module used to activate external devices
Operates on DC 12V, optional 24V, 48V
Used for smokes reset on Av-Gad alarm panels
AV01 with one relay, AV02 with two relays
Professional relays module based on double layer quality printed board
The relay module is a separate hardware device used for remote device switching
Switching high power devices up to 120W
Remotely powered on or off with commands coming from alarm panel
Relays module used for emote activation of alert devices
Slots for AV-01 and AV-02 in Av-Gad Alarm Panel ABS box
Compatible with EasyLoader and other Alarm Panels
Fast and reliable connection (not the tin wires)
Wires terminal for fast and simple installation

SKU: AV01, AV02 e

Professional relays module AV01, AV02

Professional relays module for alarm and other applications
High quality relays module dedicated for alarm panels
Each relays is protected against high voltage spikes
Professional relays module used to activate external devices
Operates on DC 12V, optional 24V, 48V
Used for smokes reset on Av-Gad alarm panels
AV01 with one relay, AV02 with two relays
Professional relays module based on double layer quality printed board
The relay module is a separate hardware device used for remote device switching
Switching high power devices up to 120W
Remotely powered on or off with commands coming from alarm panel
Relays module used for emote activation of alert devices
Slots for AV-01 and AV-02 in Av-Gad Alarm Panel ABS box
Compatible with EasyLoader and other Alarm Panels
Fast and reliable connection (not the tin wires)
Wires terminal for fast and simple installation

Main Features

High filtering level
Simple interfacing with screws wire terminal
New ultra compact design
Installer-Friendly none programming device
Build-in EMI protection
Easy and fast installation

Technical

Operating voltage: 10-14V DC
Current consumption: 9 to 15 mA at activation
Relay Output: SPDT 24 VDC@10 A max
Mounting: Printed board
Tamper Switch: None
Wiring: Terminal block with screws
RFI Protection: 30V/m, 10-1000MHz
EMI Protection: 30,000V lightning electrical interference
Operating Humidity: 80% none condensing max relative humidity
Operating Temperature: -10 to +60ºC (+14 to +140ºF)
Dimensions: 47 x 40 x 14 mm (1.85 x 1.57 x 0.55”)
