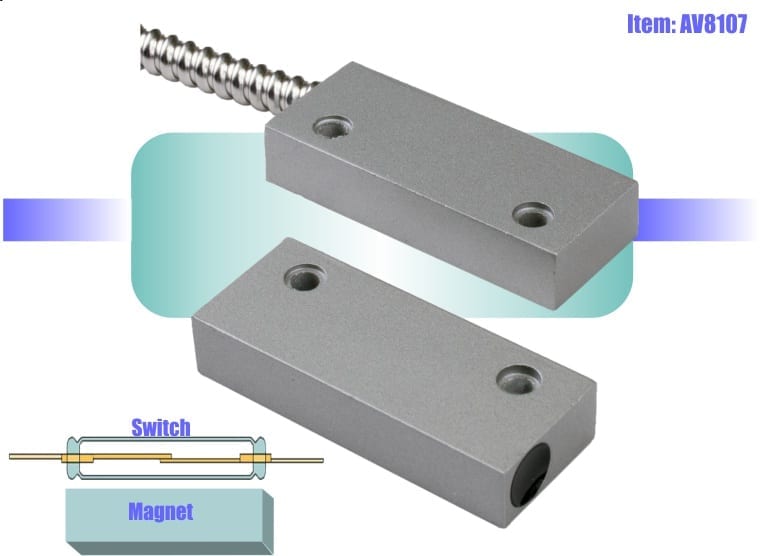

Outdoor tiny magnetic switch AV8107


Outdoor tiny magnetic switch

Outdoor tiny magnetic switch for small spaces
Magnetic switch for outdoor industrial applications
With form A (one contact) N.O.
Magnetic proximity switch
Magnetic contact switch with armored cable
Metal enclosure magnetic contact
Magnetic switch for outdoor security applications
Heavy Duty Magnetic Overhead Door Contact
Used for protecting metal doors and shatters
Magnetic side made of Alnico 5 magnet
Operation Gap Distance: 40 mm (1.6”)
Installation wires are protected in stainless steel armored flexible cable
Mounted with 2 screws without bracket
Compact switch and magnetic side: 48 X 20 X 10 mm
Flexible Mounting magnetic switch

SKU: AV8107 E

Outdoor tiny magnetic switch

Outdoor tiny magnetic switch for small spaces
Magnetic switch for outdoor industrial applications
With form A (one contact) N.O.
Magnetic proximity switch
Magnetic contact switch with armored cable
Metal enclosure magnetic contact
Magnetic switch for outdoor security applications
Heavy Duty Magnetic Overhead Door Contact
Used for protecting metal doors and shatters
Magnetic side made of Alnico 5 magnet
Operation Gap Distance: 40 mm (1.6”)
Installation wires are protected in stainless steel armored flexible cable
Mounted with 2 screws without bracket
Compact switch and magnetic side: 48 X 20 X 10 mm
Flexible Mounting magnetic switch

Main Features
Compact size magnetic contact switch
Fits industrial applications
Simple wire connection
Attached with screws
Fits heavy doors and windows
Easy and Fast installation

Technical
Magnetic switch contacts: Wires terminal 370 m”m (14.5”) long
Magnetic Sensor: Reed switch
Type: Surface Mount contact
Operation Gap Distance: 40-42 mm (1.6”)
Contacts: Form A, N.O. type
Magnet: Alnico 5
Colors: Gray as standard
Enclosure: Metal ZN Alloy
Cable: Stainless steel armored type 350 mm long (13.8″)
Maximum Breakdown Voltage: 100V
Maximum Switching Current: 500 mA
Outdoor rating: IP-44
Operating Temperature: -25°C to +80°C (-13°F to +176°F)
Switch Dimensions: 48 X 20 X 10 mm (1.89 X 0.8 X 0.4″)
Magnet Dimensions: 48 X 20 X 10 mm (1.89 X 0.8 X 0.4″)
Origin: Taiwan

What is magnetic switch?
The magnetic switch is an electric switch that is sensitive to a magnetic field.
A magnetic switch is made up of a two parts; the switch is in a hermetically sealed glass shell, which has a Reed type
switch, 2nd part is the magnet.

The contacts may be open or closed, closing when the magnetic field is in place, and opening the contacts that
a magnet is moving away.
The switch is activated by bringing a magnet near the switch, the magnet is removed and the switch changes mode.
The gap parameter is the distance that the magnet affects the switch. Average gap is between 10 and 60 mm.
Gap is an important parameter, measured on none metallic surface.
