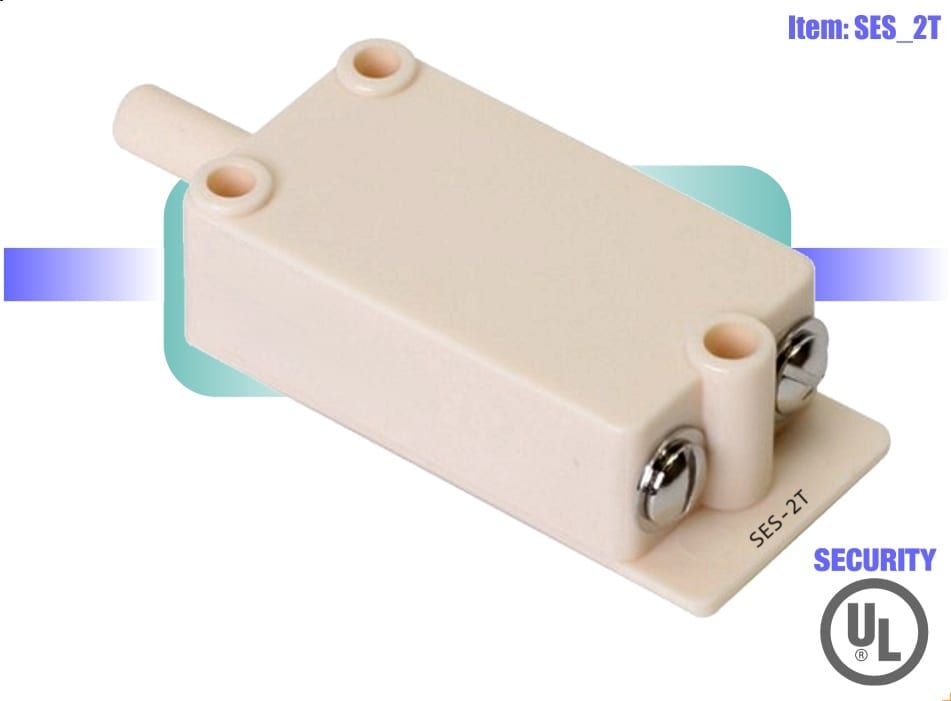

Mechanical Tamper Switch SES-2T

Mechanical Tamper Switch

Mechanical Tamper Switch for indoor applications
Tamper switch monitors open or closed position of safe deposit door
In bank and ATM protection applications interfaced with SesMo sensors
Switch form A (one contact) N.O. switch
Higher security as Mechanical tamper is none magnetic
Tamper Switch with screws terminal
The switch activated at 3.5N
Tamper switch for indoor security applications
Mechanical Tamper for alarm panels door protection
Protecting vault safe metal doors and cabinets
Low cost replacement for Roller Lever Actuator
Ideal for securing bell boxes and security control panels
Actuator Type Push on Lever
Mechanical Tamper Switch for indoor at IP-40
Certified standards: UL, ULC

Main Features
Has self-cleaning split blade contacts
Carry UL standards
Fits industrial applications
Simple wire connection
Attached with screws
Easy and Fast installation
Any attempt to bypass or disable the security switch
with an external magnet not possible

Technical
Switch contacts: Screws terminal
Sensor: Sealed switch
Type: Surface Mount contact
Overall operating stroke: 12 mm (0.5″)
Contacts: Form A, N.O.
Magnet: None
Color: Ivory
Enclosure: Plastic Alloy
Maximum Breakdown Voltage: 48V AC
Maximum Switching Current: 1A
IP rating: IP-40
Operating Temperature:  0°C to 49°C (32°F to 120°F)
Switch Dimensions: 53 X 25.5 X 17.5 mm (2.08 x 1.004 x 0.68″)
Origin: USA
