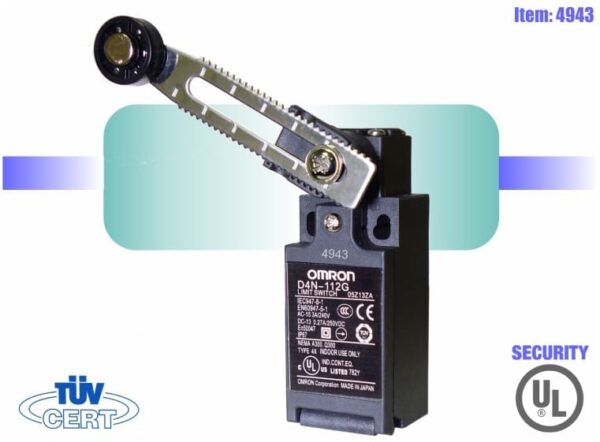

Roller lever switch D4N-112G

Roller lever switch (Omron, wires)

Roller lever switch for indoor or outdoor
Used to monitor open or closed position of safe and vault doors
Applied to underground gasoline storage (UST) tanks protection
Monitors closed/open position of vault doors, manholes covers
In some applications interfaced with SesMo sensor
Switch form C (two contacts) N.O. and N.C. switch
Head switch activated at 4.5N
Used for indoor and outdoor security applications
Used as overhead vault safe door protection
Used for protecting metal doors and shatters
Safety Switch with Roller Lever Actuator
Safety Limit Switch with roller head
Replace switch model HL-5030 by Omron
By Omron Japan model D4N-112G
Standardized gold-plated contacts provide high contact reliability
Normal State Configuration NO/NC
Actuator Type Roller Lever
For indoor and outdoors at IP-67
Conforms to EN115-1, EN81-1 and EN81-2
Certified standards: UL, EN (TÜV) and CCC

Main Features
Carry certain international standards
Fits industrial applications
Simple wire connection
Attached with screws
Easy and Fast installation

Technical
Switch contacts: Wires terminal
Sensor: Sealed switch
Type: Surface Mount contact
Operation Distance: Adjustable
Contacts: Form C, N.O. and N.C.
Force: Activated at 4.5N
Color: Black
Enclosure: Plastic Alloy
Maximum Breakdown Voltage: 240V AC
Maximum Switching Current: 10A
Outdoor rating: IP-67
Operating Temperature: -30°C to +70°C (-31° to 152°F)
Switch Dimensions: 84 x 31 x 45 mm
Origin: Japan
