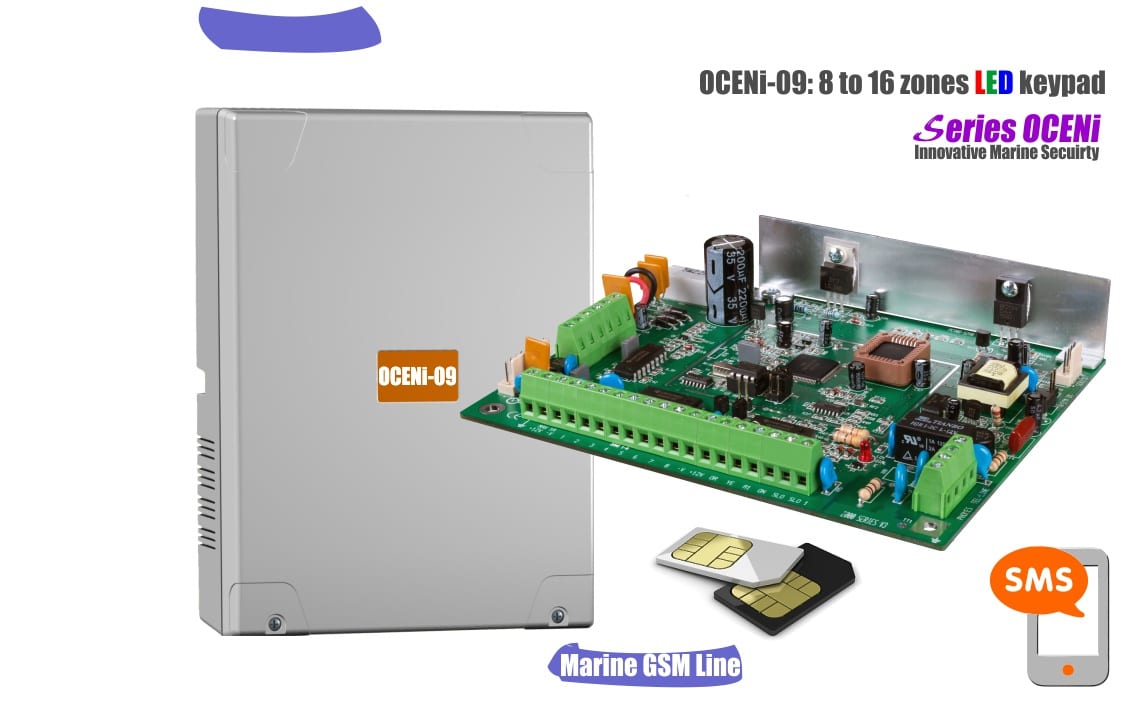

Marine alarm & fire security OCENi-09


Marine alarm & fire security GSM Control Panel

Marine alarm & fire security protects yachts and boats
Security GSM Control Panel 8 zone expandable to 16
Supports smoke and fire sensors 12/24V
Dedicated marine alarm plus fire alert system
Provides intelligent deck sensors for certain zones
Fully customized to reach zero false alarms
Supports temperature thermostat alarms
Compatible with flood high water detectors
Supports proximity sensors for main door and deck
Contains integrated GSM SMS reporter
PSTN dialer + central station Contact ID
Compatible with all Av-Gad LED Keypads
Supports up to 32 user codes, installer code, access control code
With GisMo High quality GSM module with SIM card
Sends SMS to four numbers via GSM
Dials to two central stations via PSTN
Generation IV alarm panel with enhanced processing unit
Programmable auto arming, pulse count and more for each zone

SKU: OCENi-09

Marine alarm & fire security GSM Control Panel

Marine alarm & fire security protects yachts and boats
Security GSM Control Panel 8 zone expandable to 16
Supports smoke and fire sensors 12/24V
Dedicated marine alarm plus fire alert system
Provides intelligent deck sensors for certain zones
Fully customized to reach zero false alarms
Supports temperature thermostat alarms
Compatible with flood high water detector
Supports proximity sensors for main door and deck
Contains integrated GSM SMS reporter
PSTN dialer + central station Contact ID
Compatible with all Av-Gad LED Keypads
Supports up to 32 user codes, installer code, access control code
With GisMo High quality GSM module with SIM card
Sends SMS to four numbers via GSM
Dials to two central stations via PSTN
Generation IV alarm panel with enhanced processing unit
Programmable auto arming, pulse count and more for each zone

Main Features
SMS reporting upon alarm
Supports alarm and fire system
High reliability, friendly and simple programming via keypad
Remote Up and Download via modem or AV-232

Technical
Power source: 21-24V DC
On-board zones: Eight zones expandable to 16 zones
Expandable: 8 hardwired zones
PGM outputs: 4
Siren output: Two fused (external and captain)
Keypad: Digital LED
Keypads support: 4
Remote key: RF or Key Switch
Remote arm/disarm: Mobile DTMF
Remote Wi-Fi arming: Optional with AVSWF4 and App
Communication: GSM
Expand to GSM: GisMo module
Smoke reset: Supported
Events buffer: 250
User codes: 32
Operating temperature: -20 to +60º C
Enclosure: ABS box
Dimensions: 23 X 31 X 9 cm (9” X 12 1/4” X 3 1/2)

Technical – Four zones expandable GSM Alarm

On-board zones: 4
Expandable: 8 hardwired zones
PGM outputs: 2
Siren output: One fused
Keypad: Digital LED
Keypads support: 4
Remote key: RF or Key Switch
Remote arm/disarm: Mobile DTMF
Remote Wi-Fi arming: Optional with AVSWF4
Communication: PSTN and GSM
Central station reporting: Contact ID to 1-2 centers
Expand to GSM: GisMo module
Voice message: Optional by SVM
Smoke reset: Not available
Events buffer: 250
User codes: 34 plus codes locker
Operating temperature: -20 to +60º C
Enclosure: ABS box
Dimensions: 23 X 31 X 9 cm (9” X 12 1/4” X 3 1/2)
