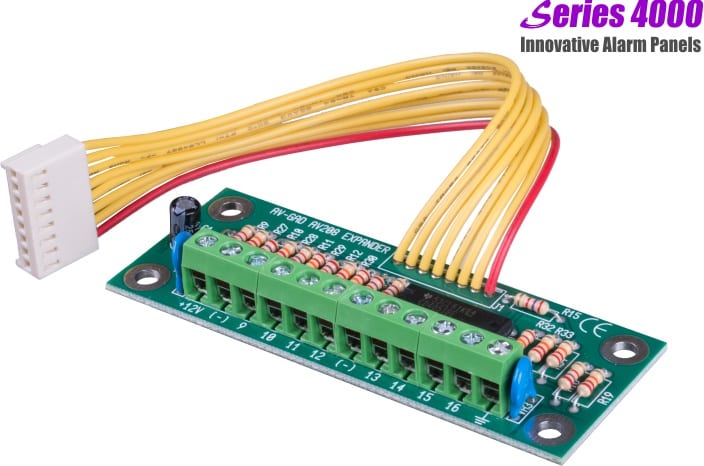

Eight zones expander module AV-208


Series 4000 8 zones expander

Series 4000 8 zones expander used to add 8 zones to Av-Gad alarm panels
Eight zones expander board for security alarm panel
Fast and easy interfacing to Av-Gad alarm panels
Compatible with series 3000 and series 4000
Eight zones expander compatible with AV-4009, AV-4009 Dublo
Eight zones expander military version for AV-4009 ELT
Provides fast and simple zones quantity expanding
Series 4000 8 zones expander support single and double zone modes
Fits into ready groves in Av-Gad’s ABS box
Expands alarm panel from 8 to 16 zone
Each AV-208 is supplied with eight 2.2K and 4.7K resistors
Protected against EMI and RFI interference

SKU: AV208 E

Eight zones expander module

Eight zones expander module for Av-Gad alarm panels
Series 4000 8 zones expander used to add 8 zones to Av-Gad alarm panels
Eight zones expander board for security alarm panel
Fast and easy interfacing to Av-Gad alarm panels
Compatible with series 3000 and series 4000
Eight zones expander compatible with AV-4009, AV-4009 Dublo
Eight zones expander military version for AV-4009 ELT
Provides fast and simple zones quantity expanding
Series 4000 8 zones expander support single and double zone modes
Fits into ready groves in Av-Gad’s ABS box
Expands alarm panel from 8 to 16 zone
Each AV-208 is supplied with eight 2.2K and 4.7K resistors
Protected against EMI and RFI interference

Technical

Auxiliary power: 12V
Current consumption: 30 mA
On-board inputs: 8 hardwired zones
Wiring: Terminal block
Common input: -V
Interfacing: One fast plug-in connector
Enclosure: None, supplied as board
Operating temperature: -20 to +60º C
Dimensions: 87 X 33 mm (3 1/2” X 1 1/3″)
