Digital PIR Motion Detector EYS2


Digital PIR Motion Detector

Digital PIR Motion Detector for alarm systems

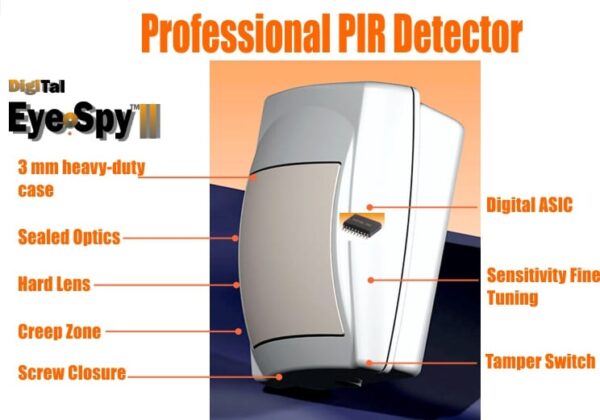

Eye Spy II professional PIR detector standard model
PIR with Digital ASIC chip plus Analog Channel
Latest Dual Pyro Sensor for PIR
Spherical Fresnel Hard lens with Creep Zone
Lens with Anti-Halogen layer prevents false alarm
Integrated Sealed Optics with hard lens
Covering up to 12 meters (Height = 2.40M) at 20° C
Extreme False Alarms Immunity
Accurate Temperature Compensation (+/- 0.2° C)
Adjustable Pulse Count
Sensitivity Fine Tuning Trimmer

SKU: EYS2 e

Digital PIR Motion Detector

Digital PIR Motion Detector for alarm systems
Eye Spy II professional PIR detector standard model
PIR with Digital ASIC chip plus Analog Channel
Latest Dual Pyro Sensor for PIR
Spherical Fresnel Hard lens with Creep Zone
Lens with Anti-Halogen layer prevents false alarm
Integrated Sealed Optics with hard lens
Covering up to 12 meters (Height = 2.40M) at 20° C
Extreme False Alarms Immunity
Accurate Temperature Compensation (+/- 0.2° C)
Adjustable Pulse Count
Sensitivity Fine Tuning Trimmer
Digital Pulse Count– Single or Triple Pulses
MOS Solid state relay ensure reliability & Silent (no clicks)
Durable and compact 3 mm thick ABS housing
Fully Computerized Quality Control Testing
High Immunity to RFI, EMI & Halogen light

Main Features Eye Spy 2 Standard
False alarm free PIR
Advanced hard lens optics
Solid-State Relay Insure Quiet Operation and Extreme Reliability
Option: Professional Swivel Bracket (Pro & Pet models)
Built-In Tamper Switch, pending EN 50130, EN 50131
Few models are available: Standard, Pro, Curtain, Pet, Energy & more..
Easy and Fast installation

Technical
Sensor: Dual Element Pyro
Sensor Pet (Quad): Quad Element Pyro
Processor: Digital ASIC with analog channel
Operating Voltage: 8.4 to 16V DC
RF Immunity: From 50 KHz to 1 GHz @ 50V/m.
Current Draw Active: 24 mA
Current Draw Standby: 7 mA
Alarm relay: Solid State MOS
Alarm Contacts: 0.1A @ 24V DC, N.C.
Tamper Contacts: 0.5A @ 24V DC, N.C.
Range: 12 meters +/- 1M @ 20 º C, @ 2.40M high
Detection: Two steps walk at 1m/sec
Indicators: Red LED for alarm
Optical Filtering: White light by pigmented lens
Warm Up Period: 60 seconds
Temperature Compensation: Automatically
Operating Temperature: -10 to +30ºC (+14 to +86ºF)
Size without swivel: 77 x 66 x 39 mm (3.0 x 2.6 x 1.5“)
