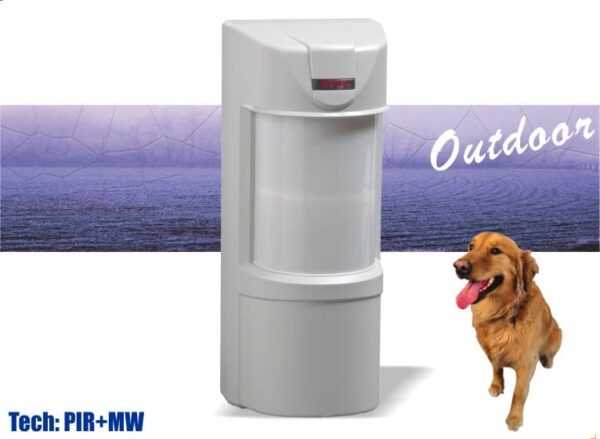

Dual Tech Pet Immune detector AVD300


Dual Tech Pet Immune detector

Advanced Dual Tech outdoor detector
Covers 12X12 meters (40×40 feet) at 80-90 cm (35″) high
Represents modern generation of professional outdoor
Outdoor movement PIR & MW burglary detectors
With Spread Spectrum Signal Analyzing
Idle for residential and industrial applications
Combination of Dual PIR & Single Microwave (MW)
Pyro sensor element & microwave Doppler Effect module
ASIC Micro controller analyzes the PIR & MW signals
Goes into alarm when only if both PIR and MW detected
With Internal rotating head housing
Head adjusted horizontally between 0°and 180°
Head detector adjustable for flexible detection pattern settings
Sun and White Light Filter prevents false alarms
Lens filters potential false alarms due to strong lights
Electronic light filter range is 61Hz to 50Hz.
Flexible mounting on walls or in corners
Supplied with heavy duty stainless metal bracket

SKU: AVD-300e

Dual Tech Pet Immune detector

Dual Tech Pet Immune detector for outdoor
Advanced Dual Tech outdoor detector
Covers 12X12 meters (40×40 feet) at 80-90 cm (35″) high
Represents modern generation of professional outdoor
Outdoor movement PIR & MW burglary detectors
With Spread Spectrum Signal Analyzing
Idle for residential and industrial applications
Combination of Dual PIR & Single Microwave (MW)
Quad pyro sensor element & microwave Doppler Effect module
ASIC Micro controller analyzes the PIR & MW signals
Goes into alarm when only if both PIR and MW detected
With Internal rotating head housing
Head adjusted horizontally between 0°and 180°
Head detector adjustable for flexible detection pattern settings
Sun and White Light Filter prevents false alarms
Lens filters potential false alarms due to strong lights
Electronic light filter range is 61Hz to 50Hz.
Flexible mounting on walls or in corners
Supplied with heavy duty stainless metal bracket

Main Features
Supplied with sealing gasket
Pet immunity up to 35Kg (pet active bellow 1m)
Low Standby current consumption only 16 mA
Dual Tamper protection
Separate PIR and Microwave range trimmers
Bi directional temperature compensation
Three Indication LEDs
Easy and Fast installation

Technical
Microwave Sensor band: 24.125 GHz
PIR Sensor: Quad Element Pyro
Anti mask sensor: None
Processor: Digital ASIC plus microprocessor
Wall installation bracket: Stainless metal
Operating Voltage: 9.6 to 16V DC
Current Draw Active: 26 mA
Current Draw Standby: 16 mA
Alarm relay: Solid State MOS
Alarm Contacts: 0.1A @ 24V DC, form C relay N.C. and N.O.
RF Immunity: From 50 KHz to 1 GHz @ 50V/m
Tamper mode: Dual Tamper protects top cover removing & housing pulling Tamper
Range: 12 meters +/- 1M @ 20 º C, @ 0.80 M high
Detection: Two steps walk at 1m/sec
Outdoor rating: IP-65
Indicators: Threes LEDs
Optical Filtering: White light by pigmented lens
Warm Up Period: 60 seconds
Temperature Compensation: Automatically
Operation Temperature: -35ºC~+55ºC (-31~131º F)
Dimensions: 200 x 86 x 80 mm (7.9 x 3.4 x 3.2″)
