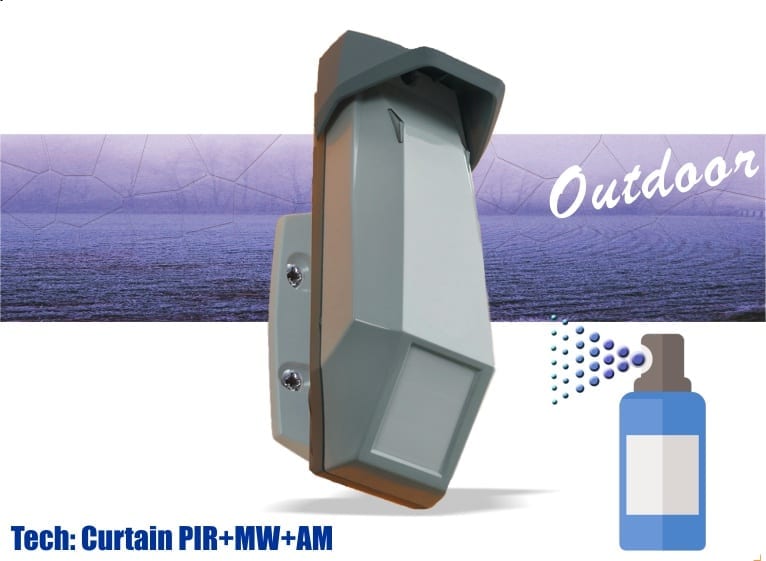

Dual Tech curtain detector AVD207


Dual Tech curtain outdoor detector

Advanced Dual Tech curtain outdoor detector
Covers 10 meters (32 feet) narrow wall
Two anti-masking modes: IR and MW
Represents modern generation of professional outdoor
Outdoor movement PIR & MW burglary detectors
Two separate relays; alarm and anti-mask
Separated fine tune range settings for PIR and microwave
Idle for residential outdoor applications
Combination of Dual PIR & Single Microwave (MW)
Pyro sensor element & microwave Doppler effect module
Micro controller analyzes the PIR & MW signals
Goes into alarm when only if both PIR and MW detected
Head detector adjustable for flexible detection pattern settings
Sun and White Light Filter prevents false alarms
Lens filters potential false alarms due to strong lights
Flexible mounting on walls or in corners
Supplied with side and flat assembly brackets

SKU: AVD207e

Dual Tech curtain detector for outdoor

Advanced Dual Tech curtain outdoor detector
Covers 10 meters (32 feet) narrow wall
Two anti-masking modes: IR and MW
Represents modern generation of professional outdoor
Outdoor movement PIR & MW burglary detectors
Two separate relays; alarm and anti-mask
Separated fine tune range settings for PIR and microwave
Idle for residential outdoor applications
Combination of Dual PIR & Single Microwave (MW)
Pyro sensor element & microwave Doppler effect module
Micro controller analyzes the PIR & MW signals
Goes into alarm when only if both PIR and MW detected
Head detector adjustable for flexible detection pattern settings
Sun and White Light Filter prevents false alarms
Lens filters potential false alarms due to strong lights
Flexible mounting on walls or in corners
Supplied with side and flat assembly brackets

Main Features
Lens transparency self test
Improved outdoor environment protection
Internal buzzer for range and detection notice
Separate PIR and Microwave range trimmers
Smart temperature compensation
Three Indication LEDs
Easy and Fast installation

Technical
Microwave Sensor band: 24.125 GHz
PIR Sensor: Quad Element Pyro
Anti mask sensor: IR and MW
Signal Processor: Microprocessor
Wall installation bracket: ABS plastic, two types
Operating Voltage: 8.4 to 16V DC
Current Draw Active: 62 mA
Current Draw Standby: 50 mA
Alarm relay (2): Solid State MOS. Alarm and AM
Alarm Contacts: 0.1A @ 24V DC, form C relay N.C. and N.O.
RF Immunity: From 50 KHz to 1 GHz @ 50V/m
Tamper mode: Tamper protects cover removing
Range: Up to 10m (32 ft) @ 20°C
Detection: Two steps walk at 1m/sec
Outdoor rating: IP-54
Indicators: Three LEDs
Optical Filtering: UV and White light by pigmented lens
Warm Up Period: 60 seconds
Temperature Compensation: Automatically
Operation Temperature: -35ºC~+55ºC (-31~131º F)
Dimensions: 160 x 75 x 68 mm (6.3” x 2.9” x 2.6”)
