Triple Tech outdoor detector AVX-300N

Triple Tech outdoor PIR & MW detector

Triple Tech outdoor detector for high security sites

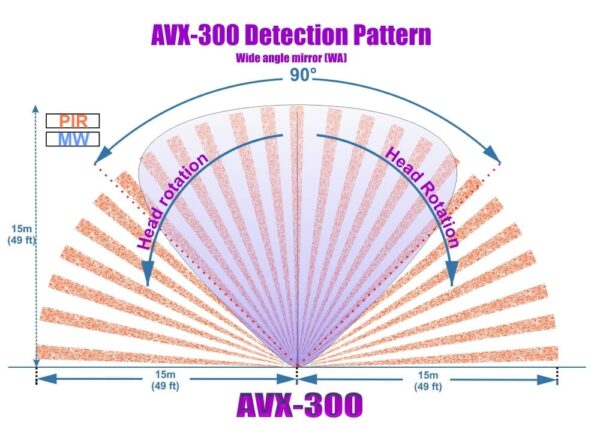

Covers 15X15 meters (49×49 ft) when installed at 1.90-2.40 cm (50″) high
Sensors includes: Twin quad element Pyro sensors and microwave
Latest vari-focal mirrors optics and microwave technology
With ultimate stability in harsh environment applications
Meet the essential requirements and is in conformity EN50131 grade III
Spread Spectrum Signal Analyzer for zero false alarm
Recommended for industrial, museum and military applications
Two Quad PIR & Single Microwave (MW) sensor with Doppler Effect module
Dual ASIC high tech Micro controller analyzes the PIR & MW signals
Triple Tech outdoor detector with latest mirror technology optics
Sun UV and White Light Filter to prevent potential false alarms due to strong lights
AVX-300 minimum order is 300 pieces

Rotating optics
– With Internal rotating housing, adjusted horizontally between 0°and 180° for flexible
detection pattern settings.
– Flexible Mounting outdoor detector mounts on walls or in corners with the supplied heavy
duty stainless metal bracket.

Triple Tech outdoor detector Main Features
Rubber sealing gasket
Internal buzzer helps range settings
Pet immunity up to 40 Kg (pet active bellow 1m)
Low Standby current consumption only 20 mA
Dual Tamper protection
Fast settings with over 10 range and environment modes
Bi directional temperature compensation
Three Indication LEDs
Easy and Fast installation

Technical
Microwave Sensor band: 24.125 GHz
PIR Sensors: Two Quad Element Pyro
Optics: Vari-focal mirrors
Anti mask sensor: None
Processor: Digital ASIC plus microprocessor
Wall installation bracket: Stainless metal
Operating Voltage: 8.4 to 16V DC
Current Draw Active: 23 mA
Current Draw Standby: 20 mA
Alarm relay: Solid State MOS
Alarm Contacts: 0.1A @ 24V DC, form C relay N.C. and N.O.
RF Immunity: From 50 KHz to 1 GHz @ 50V/m
Tamper mode: Dual Tamper protects top cover removing & housing pulling Tamper
Range: 12 meters +/- 1M @ 20 º C, @ 0.80 M high
Detection: Two steps walk at 1m/sec
Outdoor rating: IP-68
Indicators: Threes LEDs
Optical Filtering: White light by pigmented lens
Warm Up Period: 60 seconds
Temperature Compensation: Automatically
Operation Temperature: -35ºC~+55ºC (-31~131º F)
Dimensions: 192 x 153 x 251 mm (7.6 x 6 x 9.7″)
