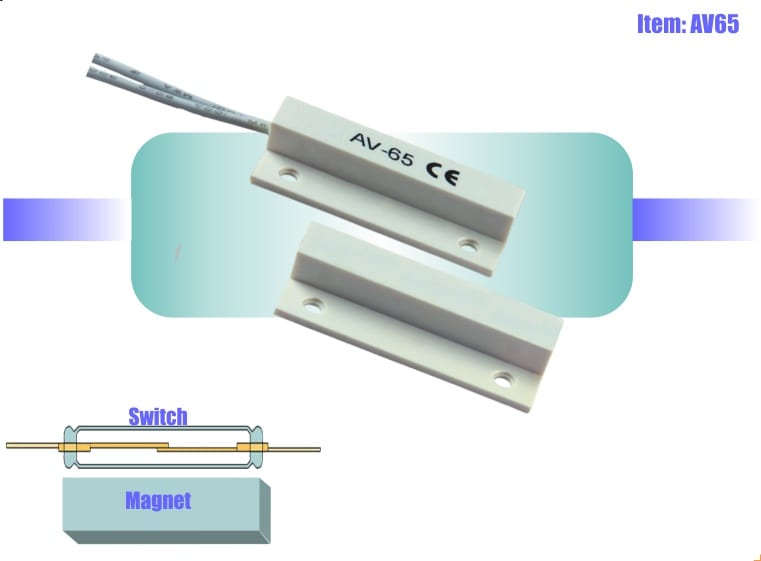

Tiny indoor magnetic switch
Small size magnetic switch for indoor applications
Switch connection with wires terminal
Tiny indoor magnetic switch security applications
Low Profile Design magnetic switch
Used for protecting doors and windows
Mini contact with Screws Terminal
Magnetic side made of Alnico 5 magnet
Wide Operation Gap Distance: Over two centimeters (1”)
Self-adhesive and screw mount
Supplied in Gift Bag 10 Pieces Each
Colors: Ivory. Optional: Gray, Brown
Small size magnetic switch L=33, W=6, H=7 mm
Flexible mounting with screws or adhesive tape
Tiny size magnetic switch
Optional screws or self adhesive tape
Good gap for doors and windows
Easy and Fast installation
Magnetic switch contacts: Wires
Magnetic Sensor: Reed switch
Type: Surface Mount contact
Operation Gap Distance: 25 mm (1″)
Contacts: One pair, Form A, N.O.
Magnet: Alnico 5
Colors: Ivory as standard
Maximum Breakdown Voltage: 24V DC
Maximum Switching Current: 50 mA
Outdoor rating: None, indoor only
Operation Temperature: 0°C to 49°C (32°F to 120°F)
Dimensions: L=33, W=6, H=7 mm
What is magnetic switch?
The magnetic switch is an electric switch that is sensitive to a magnetic field.
A magnetic switch is made up of a two parts; the switch is in a hermetically sealed glass shell, which has a Reed type
switch, 2nd part is the magnet.
The contacts may be open or closed, closing when the magnetic field is in place, and opening the contacts that
a magnet is moving away.
The switch is activated by bringing a magnet near the switch, the magnet is removed and the switch changes mode.
The gap parameter is the distance that the magnet affects the switch. Average gap is between 10 and 60 mm.
Gap is an important parameter, measured on none metallic surface.
High-quality magnet switch set includes a permanent magnet from a material that preserves magnetism over the
years, which is broken into a sealed switch that does not break.
Low quality magnetic switch loses features fast, means that switch contacts are damaged shortly after.
