Series 4000 Auto Dialer & Communicator


AV-4044DLR Series 4000 Auto dialer & Contact ID Communicator

Auto dialer and communicator
Automated dialer for a call central station, PSTN or mobile phone
Report to central station in Contact ID format
Support for additional central station formats
Super-fast automatic telephone Auto Dialer & Contact ID Communicator
Designed for alarm controls without dialer and add-on central station
Useful in industrial PLCs without a telephone report
Outstanding in stability and dial speed
Self test at each power up with LED indication
For Fire systems optional added SVM voice module
Supplied as PCB only or as enclosed module
Simple and easy programming with Keypads AV70, AV702 models

Main features

Reports to multiple central station locations simultaneously – each focal point in the same or different format
Relay to disconnect phone extensions when dialing
Ability to save and dial 6 phone numbers, each number is 32 digits long
With 4 inputs, 3 outputs
Compatible with any exists alarm or fire control panel

SKU: AV4044DLRE

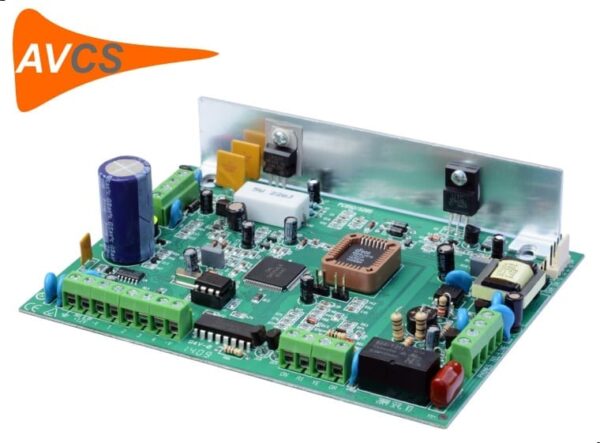

AV-4044DLR Series 4000 Auto dialer & Contact ID Communicator

Series 4000 Auto Dialer & Communicator Auto dialer and communicator
Automated dialer for a call central station, PSTN or mobile phone
Report to central station in Contact ID format
Support for additional central station formats
Super-fast automatic telephone Auto Dialer & Contact ID Communicator
Designed for alarm controls without dialer and add-on central station
Useful in industrial PLCs without a telephone report
Outstanding in stability and dial speed
Self test at each power up with LED indication
For Fire systems optional added SVM voice module
Supplied as PCB only or as enclosed module
Simple and easy programming with Keypads AV70, AV702 models

Main features

Reports to multiple central station locations simultaneously – each focal point in the same or different format
Relay to disconnect phone extensions when dialing
Ability to save and dial 6 phone numbers, each number is 32 digits long
With 4 inputs, 3 outputs
Compatible with any exists alarm or fire control panel
Option to add a voice message with local recording
When an alarm sends a siren sound or a talking message by adding a SVM-42
Triggering by N.O. or N.C contact (programmable)
Supports all reporting formats, including Contact ID or pulses
Includes built-in lightning protection
Remote controlled by DTMF commands
Built-in phone line monitor
Output activation at telephone line fault
Registration History 250 Recent events (non-volatile)
Supplied as a printed circuit or as a unit in a box with a power supply and a battery charger
Requires a power supply like 5017TER

Technical

On-board zones: 4
Expandable: 8 hardwired zones
PGM outputs: 2
Siren output: One fused
Keypad compatibility: AV-701, AV-702 LED keypads
Keypads support: 2
Remote key: RF or Key Switch
Remote arm/disarm: Mobile DTMF
Communication: PSTN and GSM
Central station reporting: Contact ID to 1-2 centers
Expand to GSM: GisMo module
Voice message: Optional by adding SVM voice module
Smoke reset: Not available
Events buffer: 250
User codes: 32 codes, 1 programming code, 1 access control code
Auxiliary power: 17V, 1A DC or AC
Operating temperature: -20 to +60º C
Enclosure: PCB only or in ABS box
Dimensions (printed circuit board): 130 x 82 mm
Dimensions (in ABS box): 23 X 31 X 9 cm (9” X 12 1/4” X 3 1/2)
