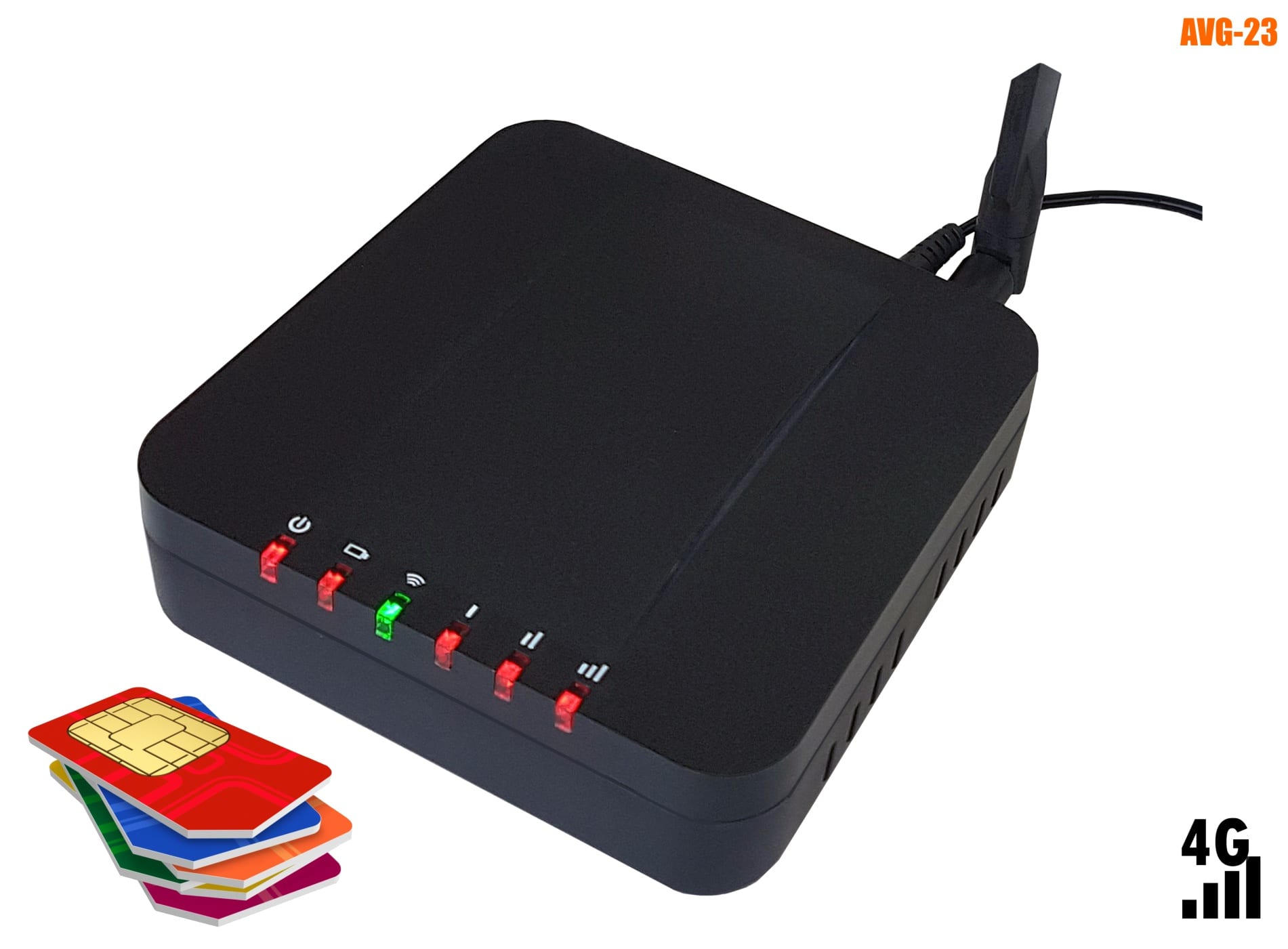

GSM alarm backup 4G AVG23


GSM alarm backup 4G

GSM alarm backup 4G (4th generation)
Fits alarm systems with PSTN line dialer
Convert devices that worked on wired phone to dial in GSM network
Enables alarm panel to dial and transmit alarms over the GSM network
Used in sites that land line (PSTN) is not available
Simple interfacing to Av-Gad alarm panels and other alarm models
Av-Gad GSM alarm backup do not requires programming
Powered by alarm panel 12V DC or added power supply
Supports 3G and 4G global GSM bands
Supports voice massage with Av-Gad SVM voice modules
Supplied with professional RF antenna and SMA plug
Added protection circuitry to prevent RFI interference
Nine LEDs for clear status indication
GSM alarm backup with on/off switch
Simple installation, easy attaching to wall or alarm enclosure
Simple Plug & Play interfacing, nothing to program

SKU: AVG23

GSM alarm backup 4G

GSM alarm backup 4G (4th generation)
Fits alarm systems with PSTN line dialer
Convert devices that worked on wired phone to dial in GSM network
Enables alarm panel to dial and transmit alarms over the GSM network
Used in sites that land line (PSTN) is not available
Simple interfacing to Av-Gad alarm panels and other alarm models
Av-Gad GSM alarm backup do not requires programming
Powered by alarm panel 12V DC or added power supply
Supports 3G and 4G global GSM bands
Supports voice massage with Av-Gad SVM voice modules
Supplied with professional RF antenna and SMA plug
Added protection circuitry to prevent RFI interference
Nine LEDs for clear status indication
GSM alarm backup with on/off switch
Simple installation, easy attaching to wall or alarm enclosure
Simple Plug & Play interfacing, nothing to program
High immunity to RFI and EMI interference
Slim size to fit in small space cabinets

Main Features
Backup or replacing dialer that worked on PSTN
Converts PSTN dialer to 3G and 4G cellular
Low Standby current consumption
No programming
Nine Indication LEDs
Easy and fast installation

Technical
Standard kit contains: RJ-11 wires and GSM antenna
GSM frequency: 3G and 4G LTE
Supply voltage: 12V DC, 1.5A
Standby current consumption: 60 mA
Current consumption: 590 mA at transmitting mode, 1.2A at power up
Indicators: LEDs (6)
Antenna: SMA connector
SIM card: Standard size
PC interface: None
Wires interface: DC power and RJ-11
Installation: Screws
RFI Protection: 30V/m @ 10–1000 MHz
EMI Protection: 50KV @ 1 mS lightning or surge
Indications: Six colored LEDs
Enclosure: ABS box
Operating Temp: -25 to +60 C° (-13 to 140° F)
Humidity: 80%
Dimension: 120 x 120 x 35 mm (4.2 x 4.2 x 1.14″)

Technical – Four zones expandable GSM Alarm

On-board zones: 4
Expandable: 8 hardwired zones
PGM outputs: 2
Siren output: One fused
Keypad: Digital LED
Keypads support: 4
Remote key: RF or Key Switch
Remote arm/disarm: Mobile DTMF
Remote Wi-Fi arming: Optional with AVSWF4
Communication: PSTN and GSM
Central station reporting: Contact ID to 1-2 centers
Expand to GSM: GisMo module
Voice message: Optional by SVM
Smoke reset: Not available
Events buffer: 250
User codes: 34 plus codes locker
Operating temperature: -20 to +60º C
Enclosure: ABS box
Dimensions: 23 X 31 X 9 cm (9” X 12 1/4” X 3 1/2)
