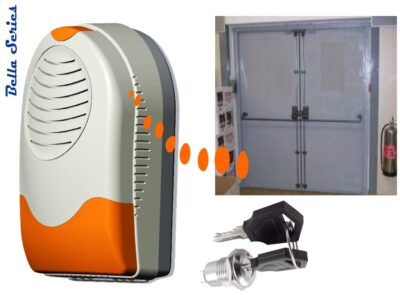

Outdoor Siren Bella I


Outdoor Siren Bella I

Outdoor Siren Bella I is the basic siren and strobe in Bella sirens series

Bella sirens series offers a range of high quality sirens
Bella series designed to rally today’s demands for high security
Bella series made to fit latest environmental challenges

Outdoor siren without internal battery
Well-designed compact shape outdoor siren/strobe
Bella sirens are available in few models to suit all kind of applications
The Bella designated for outdoor or indoor applications
Electronic board is covered by heavy-duty Polycarbonate housing
Outdoor Siren Bella_I generates loud alarm sound
Supplied with Orange color strobe cover
Blue color strobe light is optional
Contains integrated foam resistant grid
Bella_I siren comply with most European, UL and other standards
Compatible to all of 12V alarm control panels
Outdoor Siren 24V model is optional
With dual activated tamper switch
Tamper detects cover opening, removing from wall and other sabotage

SKU: Bella_Ie

Outdoor Siren Bella I

Outdoor Siren Bella I

Bella sirens series offers a range of high quality sirens
Bella series designed to rally today’s demands for high security
Bella series made to fit latest environmental challenges

Outdoor electronic siren 12V without internal battery
Delivers loud two tones sound
Well-designed compact shape outdoor siren/strobe
The Bella designated for outdoor or indoor applications
Electronic board is covered by heavy-duty Polycarbonate housing
External Siren Bella_I generates loud alarm sound
Supplied with Orange color strobe cover
Blue color strobe light is optional
Contains integrated foam resistant grid
Bella_I siren comply with most European, UL and other standards
Compatible to all of 12V alarm control panels
Outdoor Siren 24V model is optional
Bella sirens are available in few models to suit all kind of applications
Bella_I is the basic siren and strobe in Bella sirens series
With dual activated tamper switch
Tamper detects cover opening, removing from wall and other sabotage

Main Features
Outdoor Siren & Strobe enclosed in heavy duty plastic housing
Concealed wires terminal
Internal durable heavy-duty Polycarbonate housing for electronic section
Dual Tamper protection
Integrated LEDs strobe light
Easy and fast installation

Technical
Operating voltage: 12V DC (24V is optional)
Standby current draw: 0 mA
Current draw Bella I: 250 mA (Siren & Strobe)
Sound output Bella I: 106 (+/-) 3 db @ 1m. Two tones
Strobe Light output: 50,000 candle
Strobe lens: Amber standard, optional Blue color
Battery: None
RFI Protection: 30V/m @ 10–1000 MHz
EMI Protection: 50KV @ 1 mS lightning or surge
Housing material: ABS plastic with UV protector (Polycarbonate is optional)
Protection class: IP-55
Tamper: Tamper Switch; Opening and Removal protection
MTBF: 30,000 Hours
Internal barrier: None
Operating Temp: -25 to +60 C°(-13 to 140° F)
Humidity: 85%
Dimensions: (W x H x D) 15 x 22 x 9 cm. 8.6 x 5.9 x 3.5″
