Outdoor perimeter microwave detector
Outdoor perimeter microwave detector
Outdoor perimeter microwave detector with two heads
Protect large perimeter 100 or 150 M (328-492 ft) long
Detector heads installed on most fences or poles in order to
Protection and alert for outdoor perimeter activities
Microwave detector for open space detection where there is no fence
Microwave detector provides volume protection (not point to point)
Higher security level when compared to IR or laser beams
The AVM MW detectors are easy to install and adjust (AVM_CUS210)
Effective high detection range at low nuisance alarms
High immunity to rain, fog, wind, dust, falling snow at temperature extremes
Operate at X-Band (K band and other bands are optional) frequency
Microwave detector with special regions approvals
Not affected by fog and snow, or other low visibility environment
Detect human intruders walking, running or crawling
Excellent for military and civil application

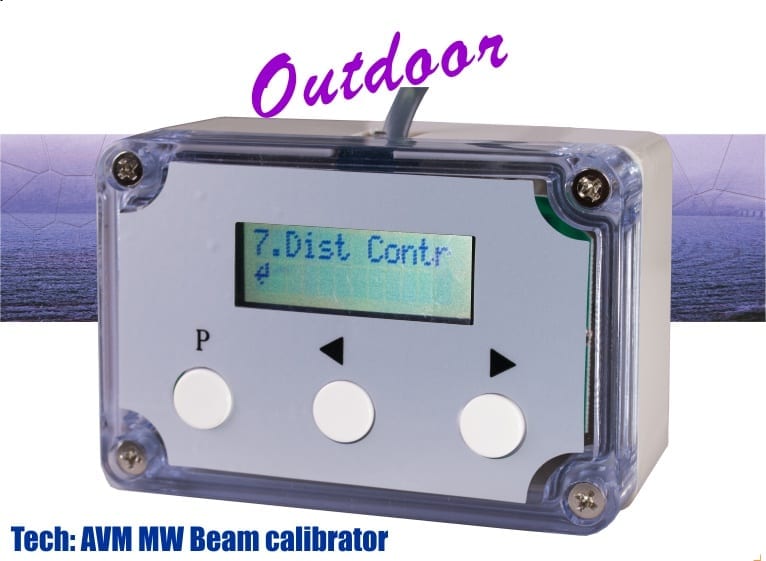

Requires electronic calibration tool model AVM_CUS210
Calibrator for simple accurate and effective false alarm free setup
Outdoor perimeter microwave detector
Outdoor perimeter microwave detector with two heads
Protect large perimeter 100 or 150 M (328-492 ft) long
Detector heads installed on most fences or poles in order to
Protection and alert for outdoor perimeter activities
Microwave detector for open space detection where there is no fence
Microwave detector provides volume protection (not point to point)
Higher security level when compared to IR or laser beams
Effective high detection range at low nuisance alarms
High immunity to rain, fog, wind, dust, falling snow at temperature extremes
Operate at X-Band (K band is optional) frequency
Microwave detector with special regions approvals.
High immunity to interference from external RFI interference
Well protected from direct sunlight, wind up to 30 m/sec
Stands snow and rain precipitation (up to 25mm/hour)
Ignore small animals, ground swing, snow/grass movement up to 0.3m high
Main Features
Dual Head Microwave barrier range up to 150 meters
High sensitivity with at 3cm/sec to 15m/sec velocity
Electronic GaAs (Gallium Arsenide FET) high stability oscillator
Fully sealed for outdoor conditions @ IP-66 level
Rejects alarms from birds and small animals
High stability at extreme range of temperatures -40°C to +66°C (-40°F to +150°F)
Technical
Microwave Sensor band: 10.525 GHz
Heads supplied: Rx and Tx
Processor: Microprocessor
Wall installation bracket: Stainless metal
Operating Voltage: 10 to 24V DC
Current Draw Active: 62 mA (Rx and Tx) at 12V
Current Draw Standby: 75 mA (Rx and Tx) at 12V
Alarm relay: Reed or Solid State MOS
Alarm Contacts: 0.1A @ 24V DC
RF Immunity: From 100 KHz to 1 GHz @ 50V/m
Tamper mode: Dual Tamper protects top cover removing & housing pulling Tamper
Range: Two models 100 and 150 meters +/- 4M @ 20 º C (328 and 492 ft)
Detection: Two steps walk at 1m/sec
Outdoor rating: IP-66
Indicators: Two LEDs
Optical Filtering: None
Warm Up Period: 90 seconds
Temperature Compensation: Automatically
Operation Temperature: -40ºC~+65ºC (-35~136º F)
Relative humidity: Up to 98%
Dimensions: 159×113×46 mm (6.2 x 4.4 x 1.8″)
