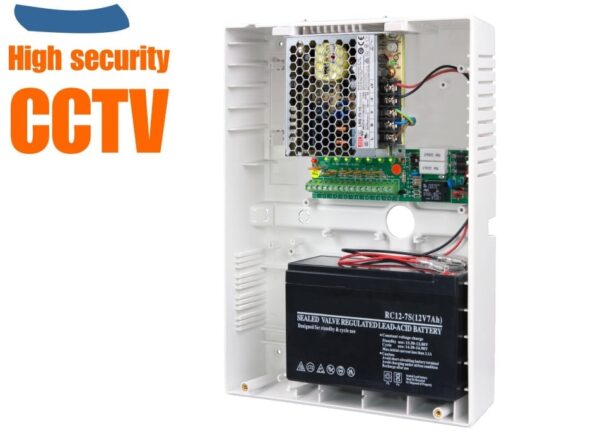

Low cost CCTV UPS AV-41


CCTV Power Supply & UPS 8 ch’s

Advanced central power supply and UPS

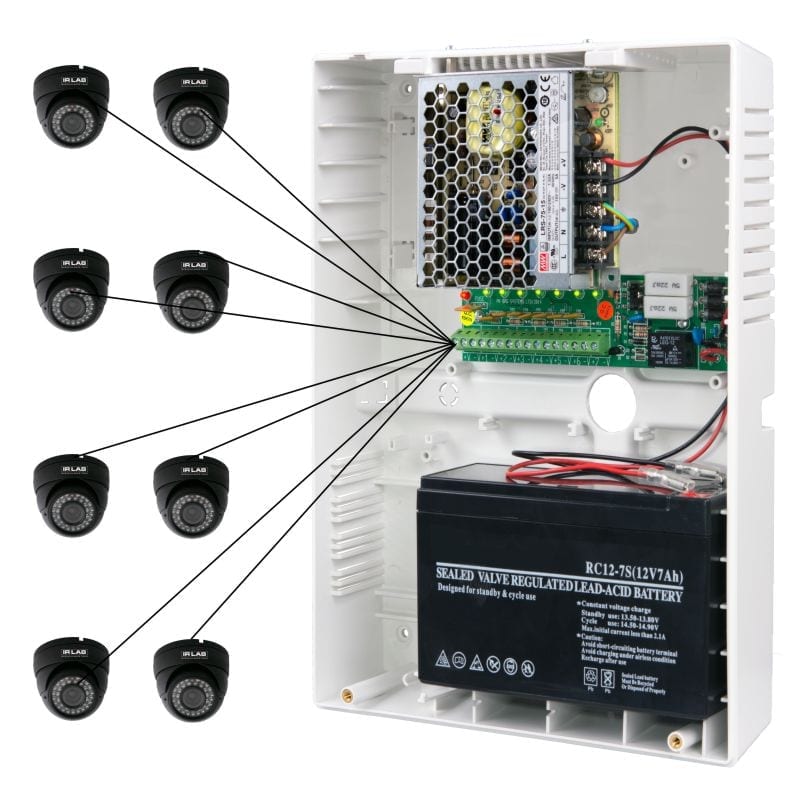

CCTV Power Supply & UPS 8 channels (outputs)
Power Supply & UPS for small to medium CCTV systems
Popular for and access control applications
Central Power Supply & UPS provides 12V DC at 6.5A (75W)
Battery backup for recording and CCTV cameras
CCTV Power Supply & UPS 8 ch’s
Each channel has a fuse secure voltage feed channel
Each channel (output) is thermal fuse protected
One faulty channel does not shut down all the cameras or a complete system
Central Power Supply & UPS for alarm system
Battery backup for recording and CCTV cameras
Smart charger with battery monitor
LED indicators for AC and each DC output channels
Keep working during power failure as a result of malfunction or AC power loss
Space inside the enclosure for rechargeable battery 5 or 7 or 9 A/H
Improved EMI and RFI protection designed for rush environment
Protects the hard disk damage as a result of power failure
AV-41 UPS has 50% higher efficiency compared to AC UPS and at lower price
Option: Output to activate dialer during malfunction or low battery

SKU: AV-41e

Low cost CCTV UPS for 8 ch’s

Low cost CCTV UPS and power supply
CCTV Power Supply & UPS 8 channels (outputs)
Power Supply & UPS for small to medium CCTV systems
Popular for and access control applications
Central Power Supply & UPS provides 12V DC at 6.5A (75W)
Battery backup for recording and CCTV cameras
CCTV Power Supply & UPS with 8 fused channels
Each channel has a fuse secure voltage feed channel
Each channel (output) is thermal fuse protected
One faulty channel does not shut down all the cameras or a complete system
Central Power Supply & UPS for alarm system
Battery backup for recording and CCTV cameras
Smart charger with battery monitor
LED indicators for AC and each DC output channels
Keep working during power failure as a result of malfunction or AC power loss
Space inside the enclosure for rechargeable battery 5 or 7 or 9 A/H
Improved EMI and RFI protection designed for rush environment

Technical details
Output voltage: 12 to 15 DC volts. Adjustable on board. Option Voltage 24 volts
Output current: 6.2A (75W)
Channels: Eight channels plus charger
Chassis: Armored plastic for easy installation
Input voltage: 110 to 220V AC
Connections: Terminal wires for thick wires
Outputs protection: Electronic fuse 1.9 amperes thermal fuse
Protection: Overload, short circuit, EMI
Charger: Includes battery monitor for maximum protection on battery
Battery type: 12V SLA (sealed lead acid)
Battery connector: Quick connector
Operating temperature: -20 to +70ºC (-4 to 158ºF)
Enclosure: ABS box
Dimensions: 23 X 31 X 9 cm (9” X 12 1/4” X 3 1/2)

Benefits to the installer
The CCTV system continues to work in a hacking attempt or when AC power fails
Protects the recording hard disk
50% higher efficiency compared to AC UPS
Suitable for all alarm CCTV 12V
Protects the hard disk damage as a result of power failure
AV-41 UPS has 50% higher efficiency compared to AC UPS and at lower price
Option: Output to activate dialer during malfunction or low battery
