GSM emergency call-up intercom for home and elevators
GSM mobile band dialer and intercom used for access control
Required for emergency call-up device
Includes programmable 3 numbers to call-up at emergency
– AVW03 GSM emergency call-up intercom provides
– Fast and reliable communication to central hub
– Useful in case of emergency or regular communication
– Fits lifts and elevators, automatic parking lot, homes and villas

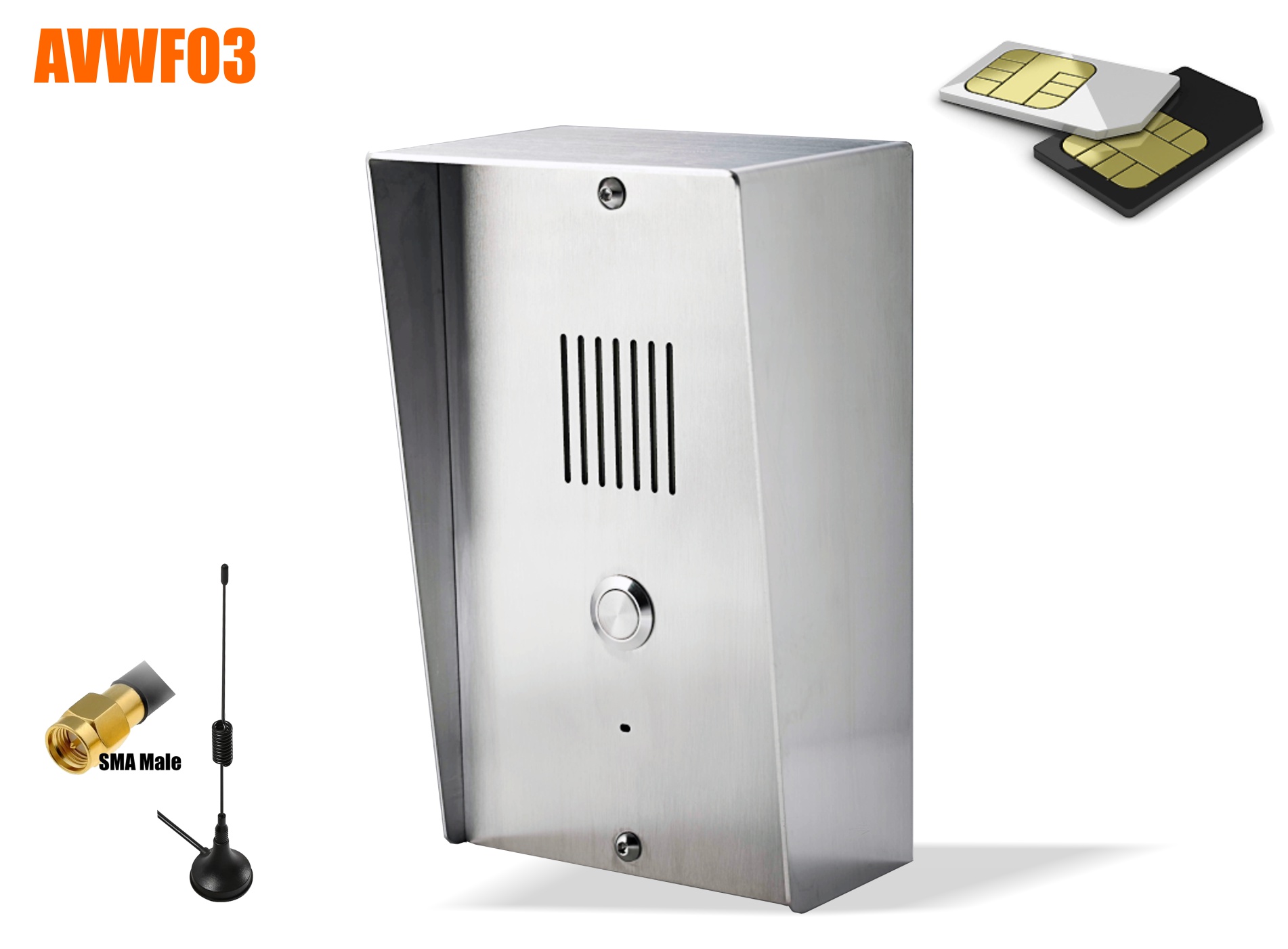

– AVW03 is enclosed in stainless steel case for vandal and safe use in most critical residential and
security applications.
– AVW03 contains durable call button along with water resistant speaker and microphone for enhanced
audio and usability.
– AVW03 has optional power sources including backup battery required in security guarding
systems, elevators emergency call, clean room entry and similar.
Main Features
Calls up to 3 numbers either land line or mobile
Optional module to activate electric device from central hub
No wires from main unit to the central control hub
Simple programming by coded SMS
Anti-Vandal call button and enclosure design
Wireless communication via GSM network
Fail alert tone notify user that unit is disabled
Compatible to Av-Gad power back-up module
Technical
Operating Voltage: 12 to 24 Volt AC/DC
Operating Current Maximum: 1.5A ta power up, idle 250 mA, Typically 55mA
GSM Module 3G: Cinterion / Simcom
GSM memory: SIM card
GSM Frequency: 850/900/1800/1900 MHz
Antenna Standard model: 1db nine
Antenna 2 For low RF directional: 9db
Antenna adapter: SMA 1 meters cable
Enclosure Stainless: 0.8 mm none magnetic
Dimensions Face plate: 170 x 100 mm
Dimensions Cabinet: 174 x 113 x 65 mm
Opacity level: IP-40
Humidity: Less than 80% RH
Operating Temperature: -20◦ to 60◦C
