CCTV Power Supply 24 channels AV26DBL


CCTV Power Supply 24 channels 58A

CCTV Power Supply 24 channels delivers 12V 58A, 700W
Central Power Supply for CCTV and access control
Central CCTV Power Supply with improved heat dissipation
Ventilated by two fans to keep high efficiency

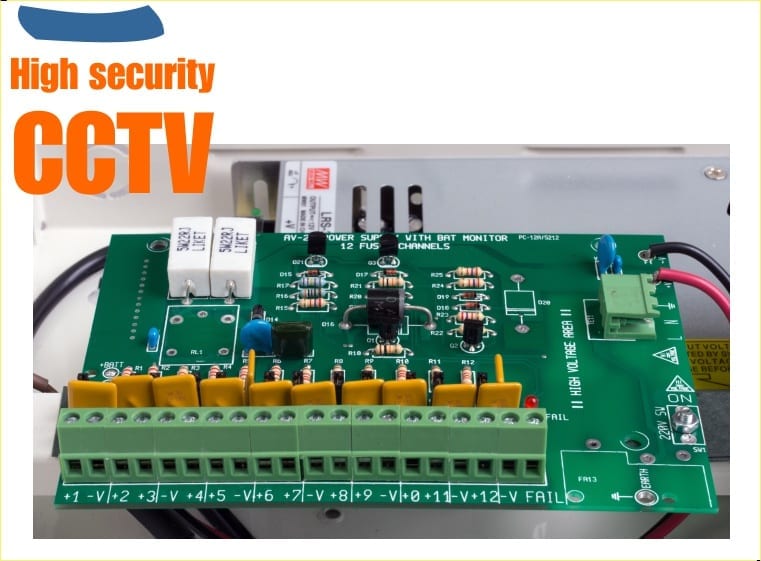

Advanced distribution circuitry with fuse protection
Two high current channel for NVR or DVR plus 22 channels for CCTV cameras
Each channel (output) is thermal fuse (PTC fuse) protected
LED indicator for each channel
One faulty channel does not shut down all the cameras or a complete system
Improved EMI and RFI protection designed for rush environment
Protects the hard disk damage as a result of power spikes
Option: 24 or 48V models
Option: 5V 1.5A output for Wi Fi router

SKU: AV26DBL e

CCTV Power Supply 24 channels 58A

CCTV Power Supply 24 channels delivers 12V 58A, 700W
Central Power Supply for CCTV and access control
Central CCTV Power Supply with improved heat dissipation
Ventilated by two fans to keep high efficiency
Advanced distribution circuitry with fuse protection
Two high current channel for NVR or DVR plus 22 channels for CCTV cameras
Each channel (output) is thermal fuse (PTC fuse) protected
LED indicator for each channel
One faulty channel does not shut down all the cameras or a complete system
Improved EMI and RFI protection designed for rush environment
Protects the hard disk damage as a result of power spikes
Option: 24 or 48V models
Option: 5V 1.5A output for Wi Fi router

Technical details

Output voltage: 12 to 15 DC volts. Adjustable on board. Option Voltage 24 volts
Output current: 58A
Channels: 24 channel
Chassis: Metal
Input voltage: 110 to 220V AC
AC input: IEC 60320 female socket
Connections: Wires Terminal  for thick wires
Camera protection: Electronic fuse 2A PTC thermal fuse
DVR, NVR protection: Electronic fuse 3A PTC thermal fuse
Charger: None
Battery type: None
Operating temperature: -20 to +70ºC (-4 to 158ºF)
Enclosure: Metal box
Dimensions: 35 x 32 x 9 cm (13 3/4” X 12 1/4” X 3 1/2)

Benefits to the installer

Save on powering
Protects the recording hard disk and cameras
Perfect solution for access control and locks system
Suitable for all CCTV systems
Quality service free device
