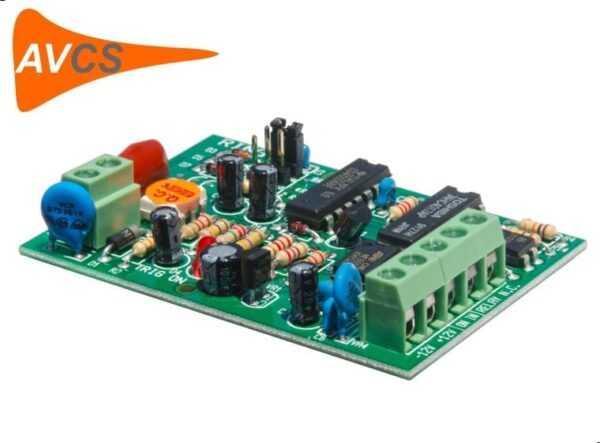

Telephone Ringer Relay Switch Ringo
Telephone Ringer Relay Switch
Telephone ringer relay switch activated via PSTN line
The on-board relay used to activate and also test a remote device
Activates an on board relay after few rings: 2, 4 or 8 rings
Ringo has on board ring count selector
Used in central station to trig test signal besides radio transmitter
Remote device testing or signaling through the telephone line
For alarm systems turns on external siren, buzzer, bell, light, etc
On board relay turns on the incoming ringing signal
Also used for remote relay activation via phone line
Phone line entry with optical insulation to protect electronics
Checks the telephone line health during the day
Includes telephone line filter interference and spikes protection
Compatible with analog lines besides ADSL telephone lines (filter required)
The Ringo module do not load the telephone line
The Ringo is designed to meet the CTR-21 also AUSTEL approvals
Meets telephone standards requirements in order to prevent PSTN loading
Powered by 12V DC, also with phone line insulation
The relay is rated to switch loads of up to 28 Vdc @ 0.1A maximum
Telephone Ringer Relay Switch
Telephone ringer relay switch activated via PSTN line
The on-board relay used to activate and also test a remote device
Activates an on board relay after few rings: 2, 4 or 8 rings
Ringo has on board ring count selector
For example used in central station to trig test signal besides radio transmitter
Remote device testing additionally signaling through the telephone line
For alarm systems turns on external siren, buzzer, bell also light
On board relay turns on the incoming ringing signal
Additionally used for remote relay activation via phone line
Phone line entry with optical insulation to protect electronics
Checks the telephone line health during the day
Includes telephone line filter interference and spikes protection
Compatible with analog lines besides ADSL telephone lines (filter required)
The Ringo module do not load the telephone line
The Ringo is designed to meet the CTR-21 also AUSTEL approvals
Meets telephone standards requirements in order to prevent PSTN loading
Powered by 12V DC, also with phone line insulation
The relay is rated to switch loads of up to 28 Vdc @ 0.1A maximum
What is Ringo?
Ringo is allows remote activated of relay via phone line, telephone ringer relay.
There is a telephone counting superintendent, the Ringo counts the rings number, the
relay will be activated at the end of the count.
The Ringo has an optional logic enable/disable input, when apply a -V the Ringo is active.
Main Features
Simple way to remote switch any device
Advanced isolated electronics
New ultra compact design
Installer-Friendly besides none programming device
Build-in logic prevents false activation
Easy and fast installation
Technical
Power Input: 9 to 16 Vdc
Current @ Standby: 18mA @ Active: 40mA at 12V
Tel. Line: Analog (PSTN) up to 55V
Phone line input: Optical chip
Indications: LED
Relay type: 28 Vdc @ 0.1A maximum, N.C. and common contacts
Mounting: Printed board
Tamper Switch: None
Sensor: Electronic
RFI Protection: 30V/m, 10-1000 MHz
EMI Protection: 40,000V low level lightning electrical interference
Operating Humidity: 80% non condensing max relative humidity
Operating Temperature: -10 to +60ºC (+14 to +140ºF)
Dimensions: 69 x 48 x 15 m”m (2.72 x 1.89 x 0.59″)
