SesMo Wall Break detector


SesMo as Wall Break detector

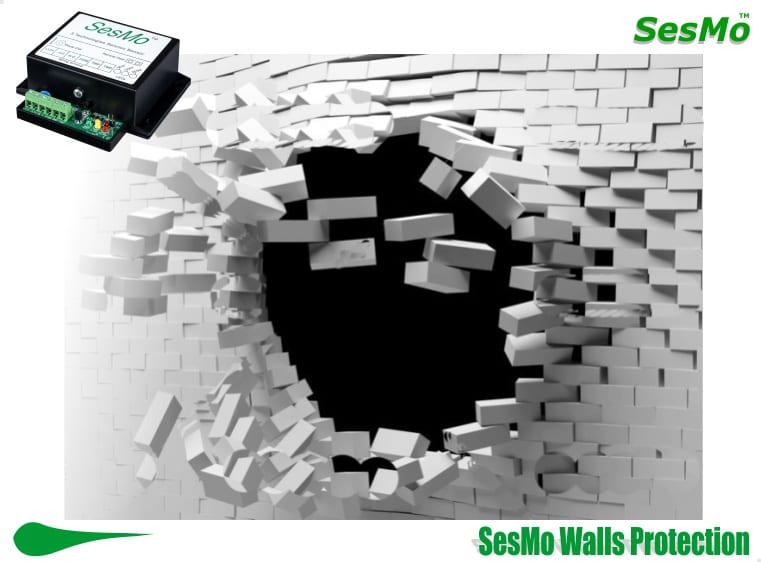

SesMo Wall Break is an advanced seismic detector for walls protection
Incorporates three detection technologies into one detector

Walls protection
SesMo Wall Break detector integrated detector for walls, ceiling and floor protection
The SesMo do not include any moving mechanical parts
The SesMo wall detector is suitable for detecting burglary through walls
Used for weapons warehouses, frozen food storage warehouse
Also sued for banks vault rooms and strong rooms
Replace mechanical shock detectors for yacht rooms protection
Has been tested and approved by security bodies in Israel and abroad
Integrated solution for safes, steel-reinforced walls, bunkers protection
Based on ASIC processor with advanced signal analysis
The SesMo seismic detector provides high sensitivity
Has very low false activation
The SesMo is a combination of three detectors
Providing protection in wide burglary methods
ASIC Micro controller analyzes the detected signals
In case of seismic, light or heat detected SesMo goes into alarm mode
Alarm is activated as soon as one of the three sensors activated

SKU: SesMo_W

SesMo as Wall Break detector

SesMo Wall Break is an advanced seismic detector for walls protection
Incorporates three detection technologies into one detector

Walls protection
SesMo Wall Break detector integrated detector for walls, ceiling and floor protection
The SesMo do not include any moving mechanical parts
The SesMo wall detector is suitable for detecting burglary through walls
Used for weapons warehouses, frozen food storage warehouse
Also sued for banks vault rooms and strong rooms
Replace mechanical shock detectors for yacht rooms protection
Has been tested and approved by security bodies in Israel and abroad
Integrated solution for safes, steel-reinforced walls, bunkers protection
Based on ASIC processor with advanced signal analysis
The SesMo seismic detector provides high sensitivity
Has very low false activation
The SesMo is a combination of three detectors
Providing protection in wide burglary methods
ASIC Micro controller analyzes the detected signals
In case of seismic, light or heat detected SesMo goes into alarm mode
Alarm is activated as soon as one of the three sensors activated

Precise electronic filters prevent the SesMo detector potential false alarms due
to environmental
disturbance. Innovative detection technology! No false sessions!

Main Features
Enclosed in ABS housing, or sealed housing
High immunity to false alarms
Low Standby current consumption only 25 mA
Tamper protection
Separate sensitivity and enable/disable for each detection technology
Three Indication LEDs
Easy and fast installation

Technical
Seismic sensor: Bimorph
Heat sensor: Semiconductor (min. 75 °C, 167 ° F)
Light sensor: Opto Cell (min. 20 Lux)
Processor: Digital ASIC
Applications: Indoor
Operating Voltage: 8.4 to 14V DC. For 24V special order
Current: 25 mA @ standby, 50 mA alarm
Relay: N.C. mode, solid state, 50 mA @ 12V
RFI Protection: 30V/m @ 10–1000 MHz
EMI Protection: 50KV @ 1 mS lightning or surge
Tamper: Protects top cover removing
MTBF: 30,000 Hours
Detection: Seismic, heat, light
Indications: Three colored LEDs
Operating Temp: -25 to +60 C° (-13 to 140° F)
Humidity: 80%
Enclosure: ABS, Black color
Size: W=90, L=85, H=50 mm (3.55 x 3.35 x 2″)
