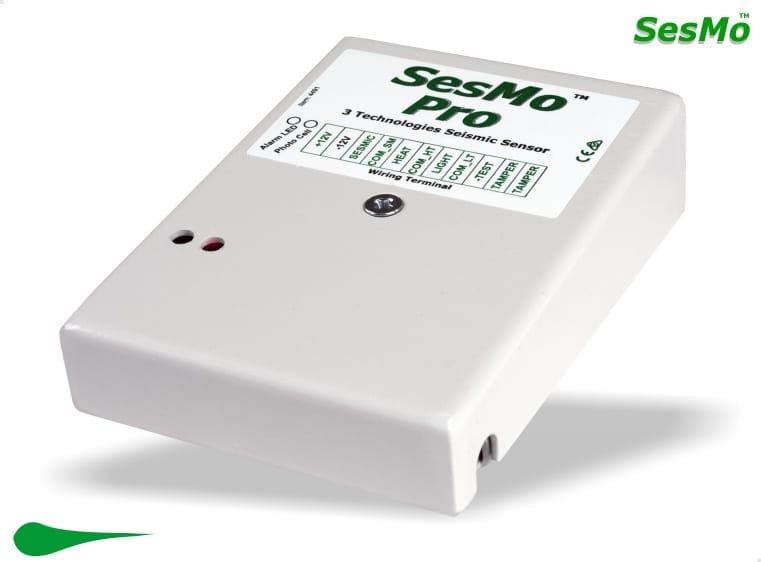

SesMo Pro seismic detector
SesMo Pro detector & SesMo Pro_I
SesMo Pro detector detects Seismic shocks, heat and light
Represents most modern generation of professional burglar detector
Advanced seismic detector for safe and vault, walls and ATM protection
With three (3) alarm relays
One relay for each detection technology
Incorporates three detection technologies into one detector
Contains build-In Testing Simulators for remote testing
Remote testing of each detection technology (according to model) at real time
Supplementary protection of interior objects such as walls, file cabinets
The SesMo Pro designed to meet EN-50131 Grade 4
Housed in metal case, 12V operating power and relay output
SesMo replaces old mechanical shock and vibration detectors
For additional removal protection for ATM and similar objects add pull apart switch AV8105S
The SesMo is a combination of 3 detectors providing wide protection
Based on ASIC Micro controller that analyzes the detected signals
Alarm is activated as soon as one of the three sensors activated
SesMo Pro detector & SesMo Pro_I
SesMo Pro detector detects Seismic shocks, heat and light
Represents most modern generation of professional burglar detector
Advanced seismic detector for safe and vault, walls and ATM protection
With three (3) alarm relays
One relay for each detection technology
Incorporates three detection technologies into one detector
Contains build-In Testing Simulators for remote testing
Remote testing of each detection technology (according to model) at real time
Supplementary protection of interior objects such as walls, file cabinets
The SesMo Pro designed to meet EN-50131 Grade 4
Housed in metal case, 12V operating power and relay output
SesMo replaces old mechanical shock and vibration detectors
For additional removal protection for ATM and similar objects add pull apart switch AV8105S
The SesMo is a combination of 3 detectors providing wide protection
Based on ASIC Micro controller that analyzes the detected signals
Alarm is activated as soon as one of the three sensors activated
Main Features
Save funds and time
By applying unique signal analyzing the SesMo prevents false alarms
High immunity to false alarms
Low Standby current consumption only 25 mA
Dual Tamper protection
Enable/disable for each detection technology
Precise electronic filters prevent the SesMo detector false alarms
Technical
Seismic sensor: Bimorph
Heat sensor: Semiconductor (min. 75 °C, 167 ° F)
Light sensor: Opto Cell (min. 20 Lux)
Processor: Digital ASIC
Testing simulators: Pro model with 3, Pro_I model 2
Applications: Indoor
Operating Voltage: 11 to 14V DC
Current: 25 mA @ standby, 50 mA alarm
Relays: (3) N.C. mode, solid state, 50 mA @ 12V
RFI Protection: 30V/m @ 10–1000 MHz
EMI Protection: 50KV @ 1 mS lightning or surge
Tamper: Two Tamper Switches protects Opening & Removal
MTBF: 50,000 Hours
Detection: Seismic, heat, light
Indications: Three colored LEDs
Operating Temp: -25 to +60 C°(-13 to 140° F)
Humidity: 80%
Enclosure: Aluminum, Gray color
Dimensions: 110 X 95 X 29 mm (4.33 X 3.3 X 1.08″)
