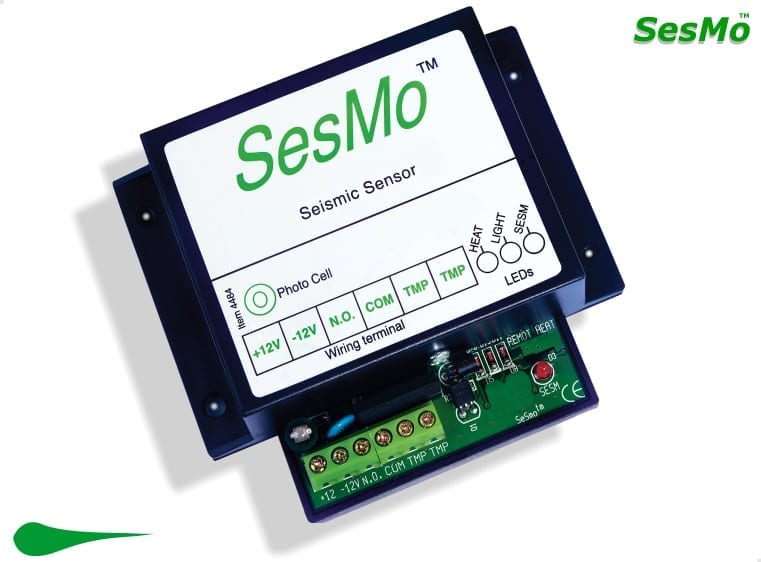

SesMo NLH Detector OEM model


SesMo NLH Detector

The SesMo NLH detector has single technology detection
SesMo NLH is an advanced seismic detector for security systems
This SesMo NLH version is most supplied to OEM
Protects interior safe and vault, walls and ATM kiosks
Incorporates single detection technology for saving purpose
SesMo targeted for OEM orders in high volume orders
Most used for ATM and vending machines protection
Also applied for supplementary protection of interior objects such as walls
SesMo detector represents the most modern burglar detector generation
The SesMo NLH is an economical version in ABS case
12V operating power and relay output
Unique signal analyzing the SesMo prevents false alarms
The SesMo Detector NLH replaces old mechanical shock

SKU: SesMo_NLH

SesMo NLH Detector

The SesMo NLH detector has single technology detection
SesMo NLH is an advanced seismic detector for security systems
This SesMo NLH version is most supplied to OEM
Protects interior safe and vault, walls and ATM kiosks
Incorporates single detection technology for saving purpose
SesMo targeted for OEM orders in high volume orders
Most used for ATM and vending machines protection
Also applied for supplementary protection of interior objects such as walls
SesMo detector represents the most modern burglar detector generation
The SesMo NLH is an economical version in ABS case
12V operating power and relay output
Unique signal analyzing the SesMo prevents false alarms
The SesMo Detector NLH replaces old mechanical shock
Old vibration detectors cause false alarms and have lower reliability
Advanced ASIC Micro controller analyzes the detected signals

Precise ASIC micro electronic filters prevent the SesMo detector
potential false alarms due to environmental disturbance

Main Features
For OEM and safe manufactures
High immunity to false alarms
Low Standby current consumption only 19 mA
Tamper protection
Sensitivity and pulse count settings
Easy and fast installation

Technical
Seismic sensor: Bimorph
Heat sensor: None
Light sensor: None
Processor: Digital ASIC
Applications: Indoor
Operating Voltage: 8.4 to 14V DC
Current: 19 mA @ standby, 45 mA alarm
Relay: N.C. mode, solid state, 50 mA @ 12V
RFI Protection: 30V/m @ 10–1000 MHz
EMI Protection: 50KV @ 1 mS lightning or surge
Tamper: Protects top cover removing
MTBF: 30,000 Hours
Detection: Seismic
Indications: LED
Operating Temp: -25 to +60 C°(-13 to 140° F)
Humidity: 80%
Enclosure: ABS, Black color
Size: W=90, L=85, H=50 mm (3.55 x 3.35 x 2″)
