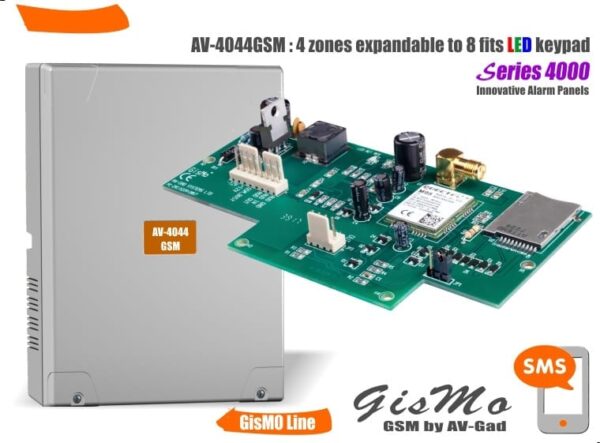

Security GSM Control Panel 4/8 zones AV4044GSM

Security GSM Control Panel 4/8 zones

Security GSM Control Panel 4/8 zones for LED keypad
Four zones expandable to 8 zones with EOL resistors
Alarm Panel with integrated GSM SMS reporter
PSTN dialer + central station Contact ID
Four zones expandable GSM Alarm or eight zones
Select GSM or PSTN via programming
Select on board 4 or 8 zones, SMS alarm panel
Compatible with all Av-Gad LED Keypads
Supports up to 32 user codes, installer code, access control code
With GisMo High quality GSM module with SIM card
Dials to 6 numbers via PSTN
Sends SMS to four numbers via GSM
Dials to two central stations via PSTN
Generation IV alarm panel with enhanced processing unit
Programmable auto arming, pulse count and more for each zone

In GMS mode
SMS with alarm zone and events descriptions like: Kitchen 1 Alarm, AC fail, Low Battery, Fire Zone Alarm… and more

In PSTN Mode
Dials for 6 numbers, with or without vocal message plus Follow-Me feature
High Speed Communicator for all Formats including Contact ID

In GSM + PSTN mode
Dials only and SMS (CS report is done via PSTN)

Main Features
Supports central station SMS reporting
Compatible with EasyLoad PC software
High reliability, friendly and simple programming via keypad or PC
Remote Up and Download via modem or AV-232

Technical
On-board zones: Four zones expandable GSM to eight zones
Expandable: 8 hardwired zones
PGM outputs: 2
Siren output: One fused
Keypad: Digital LED
Keypads support: 4
Remote key: RF or Key Switch
Remote arm/disarm: Mobile DTMF
Remote Wi-Fi arming: Optional with AVSWF4
Communication: PSTN and GSM
Central station reporting: Contact ID to 1-2 centers
Expand to GSM: GisMo module
Voice message: Optional by SVM
Smoke reset: Not available
Events buffer: 250
User codes: 32
Operating temperature: -20 to +60º C
Enclosure: ABS box
Dimensions: 23 X 31 X 9 cm (9” X 12 1/4” X 3 1/2)
