Food Vending Machine Protection SesMo_F

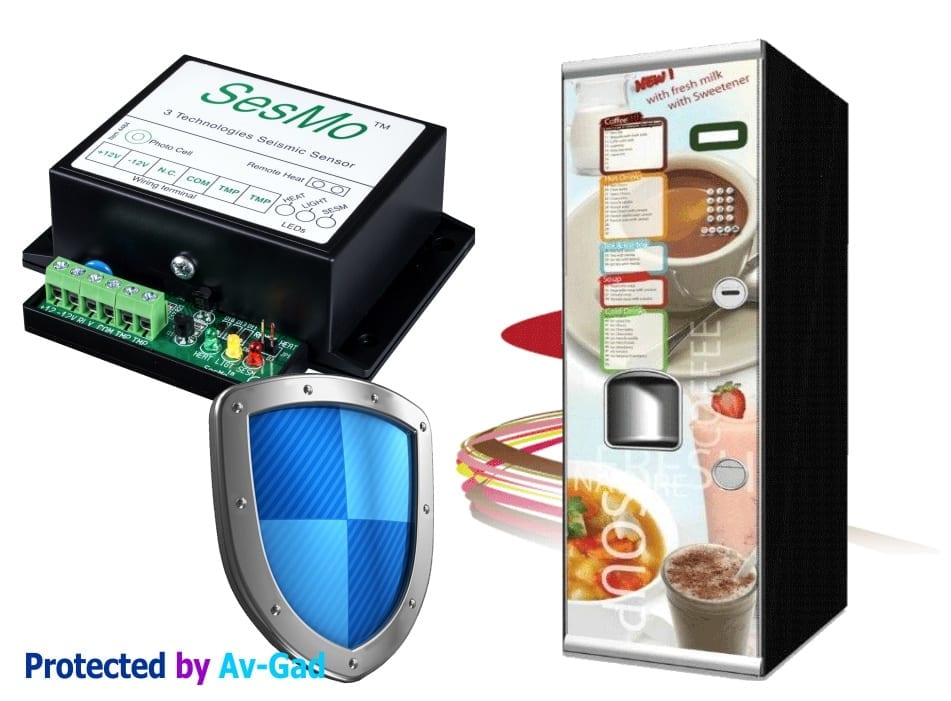

SesMo for Food Vending Machine Protection

SesMo for food vending machine protection against burglary
Triple protection technologies: Break, heat and light
SesMo incorporates three detection technologies into one detector
The SesMo is a combination of three detectors: Seismic, heat & light
SesMo most used for primary protection of ATM & bank or mercantile safe
Also applied for supplementary protection of cabinets, display stand
Fits into most vending food and drinks machines
SesMo represents most modern generation of professional burglar detector
The SesMo Standard is an economical version in ABS case
Operates at 12V or 24V with single relay output
By applying unique signal analyzing the SesMo prevents false alarms
The SesMo replaces mechanical old shock and vibration detectors
The combination of three detectors provides higher security
ASIC Micro controller analyzes the detected signals
Alarm is activated as soon as one of the three sensors activate
Precise electronic filters prevent potential false alarms due to environmental disturbance

For machine back door protection refer to the SES_2T sensor

Main Features
Enclosed in ABS housing
High immunity to false alarms
Low Standby current consumption only 25 mA
Tamper protection is optional
Separate sensitivity and enable/disable for each detection technology
Three Indication LEDs
Easy and fast installation

Technical
Seismic sensor: Bimorph
Heat sensor: Semiconductor (min. 75 °C, 167 ° F)
Light sensor: Opto Cell (min. 20 Lux)
Processor: Digital ASIC
Applications: Indoor
Operating Voltage: 8.4 to 14V DC (24V optional)
Current: 25 mA @ standby, 50 mA alarm
Relay: N.C. mode, solid state, 50 mA @ 12V
RFI Protection: 30V/m @ 10–1000 MHz
EMI Protection: 50KV @ 1 mS lightning or surge
Tamper: Protects top cover removing – Optional
MTBF: 20,000 Hours
Detection technologies: Seismic, heat, light
Indications: Three colored LEDs
Enclosure: ABS, Black color
Operating Temp: -25 to +60 C°(-13 to 140° F)
Humidity: 80%
Size: W=90, L=85, H=50 mm (3.55 x 3.35 x 2″)
