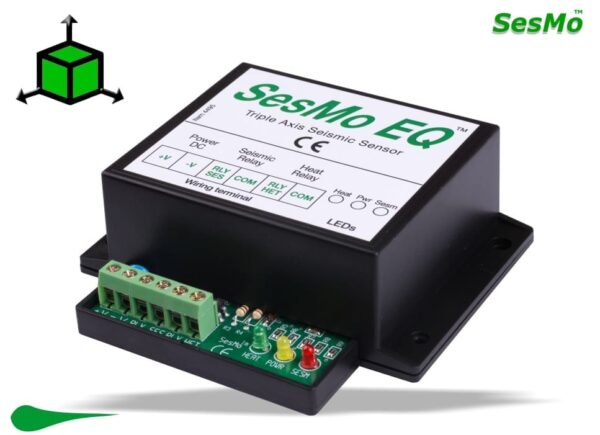

Earthquake alert SesMo EQ
Seismic detector alert
Seismic detector earthquake alert with triple axis sensor
SesMo EQ used as earthquake alert device in residential sites
SesMo EQ activates relay in case of earthquake of mass explosive
SesMo EQ seismic detector incorporates two detection
technologies into one detector
Quality seismic switch
SesMo EQ detector integrates seismic and heat detectors
Earthquake alert not includes any moving mechanical parts
The SesMo EQ detector is suitable for machinery applications

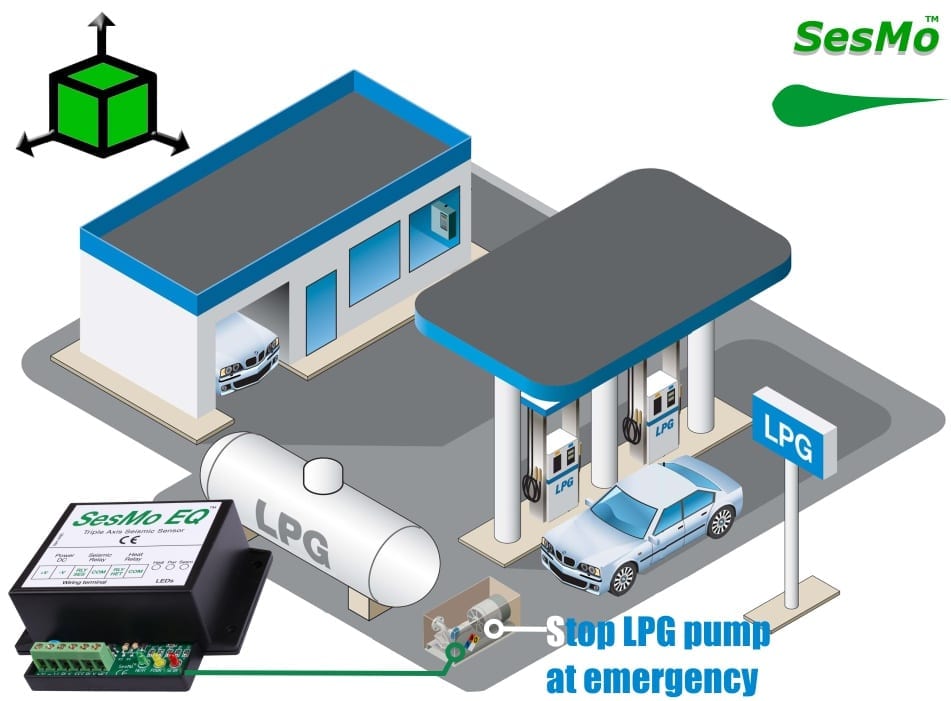

For gas stations to automatic shut off valves at emergency refer to SesMo EQBA
SesMo EQ is a reliable detectors, without mechanical parts
Detects Z, vertical and horizontal movements (3-axis)
Based on ASIC processor with advanced signal analysis
SesMo EQ detector provides high sensitivity with very low false activation
With two independent relay contact outputs; Seismic and Heat
The SesMo EQ is an economical version in ABS case
ASIC Micro controller analyzes the detected signals
Seismic detector alert
Seismic detector earthquake alert with triple axis sensor
SesMo EQ used as earthquake alert device in residential sites
SesMo EQ activates relay in case of earthquake of mass explosive
SesMo EQ seismic detector incorporates two detection
technologies into one detector
Quality seismic switch
SesMo EQ detector integrates seismic and heat detectors
Earthquake alert not includes any moving mechanical parts
The SesMo EQ detector is suitable for machinery applications
For gas stations to automatic shut off valves at emergency refer to SesMo EQBA
SesMo EQ is a reliable detectors, without mechanical parts
Detects Z, vertical and horizontal movements (3-axis)
Based on ASIC processor with advanced signal analysis
SesMo EQ detector provides high sensitivity with very low false activation
With two independent relay contact outputs; Seismic and Heat
The SesMo EQ is an economical version in ABS case
ASIC Micro controller analyzes the detected signals
In case of seismic earthquake or heat detected SesMo goes into alarm
Clear visual signaling with three indication LEDs
Simple DIP Eight Switches Array for performance setting
Precise electronic filters prevent the SesMo EQ detector potential
false alarms due to environmental disturbance.
Innovative detection technology! No false sessions!
Main Features
Enclosed in small ABS housing
High immunity to false alarms
Low Standby current consumption only 25 mA
Advanced 3 axis sensor
Three Indication LEDs
Easy and fast installation
Technical
Seismic sensor: 3 Axis semiconductor
Heat sensor: Semiconductor (min. 75 °C, 167 ° F)
Processor: Digital ASIC
Frequency response: 0.2 Hz – 20 Hz
Sensitivity: Calculated magnitude 4.8 to 5.0
Alarm inertial threshold range: 0.4 – 1m/s² (Meter per second squared)
Applications: Indoor
Operating Voltage: 8.4 to 14V DC. For 24V special order
Current: 25 mA @ standby, 50 mA alarm
Relay: (2) N.C. mode, solid state, 100 mA @ 12V
RFI Protection: 30V/m @ 10–1000 MHz
EMI Protection: 50KV @ 1 mS lightning or surge
MTBF: 20,000 Hours
Detection: Seismic, heat
Indications: Three colored LEDs
Humidity: 80%
Operating Temp: -25 to +60 C° (-13 to 140° F)
Size: W=90, L=85, H=50 mm (3.55 x 3.35 x 2″)
