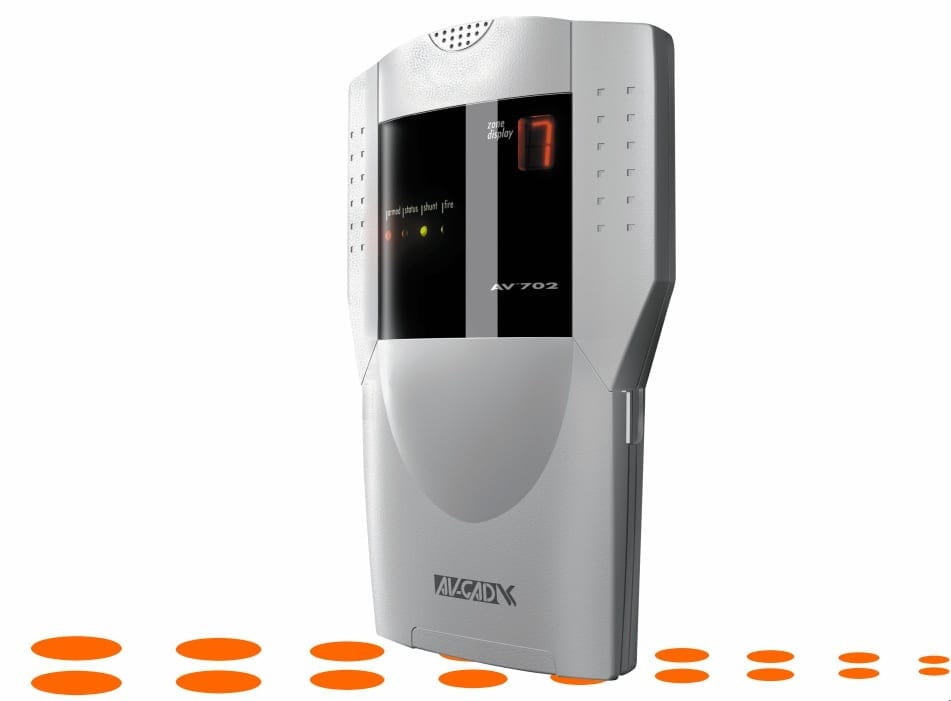

Digital 7 Segments Alarm Keypad New Look


Digital 7 Segments Alarm Keypad New Look AV-702

Digital 7 Segments Alarm Keypad New Look shape
With keys tilt door
Digital 7-Segments Display alarm keypad for Av-Gad LED panels
Illuminated Alarm Keypad with automatic timer
Thin slim-profile for wall-mounted
Added keypad back-light illumination
Economical alarm keypad with illuminated keypad
Digital Red 7-Segments displays troubled zones and events
Alarm keypad with simple and fast events reading
Control via 12 Rubber Keys
Compatible with most Av-Gad panels (except PRO & Dublo)
Extra Indications with four colored LEDs
Interfacing via four wires to alarm control panel
Wires connected via wires terminal
Coal plated keypad contacts for long lasting
Testing functions by hold down or keys combination
Alarm keypad with internal buzzer
Each key entry confirmed by beep and display
Supports events log viewing

SKU: AV-702e

Digital 7 Segments Alarm Keypad New Look AV-702

Digital 7 Segments Alarm Keypad New Look shape
With keys tilt door
Digital 7-Segments Display alarm keypad for Av-Gad LED panels
Illuminated Alarm Keypad with automatic timer
Thin slim-profile for wall-mounted
Added keypad back-light illumination
Economical alarm keypad with illuminated keypad
Digital Red 7-Segments displays troubled zones and events
Alarm keypad with simple and fast events reading
Control via 12 Rubber Keys
Compatible with most Av-Gad panels (except PRO & Dublo)
Extra Indications with four colored LEDs
Interfacing via four wires to alarm control panel
Wires connected via wires terminal
Coal plated keypad contacts for long lasting
Testing functions by hold down or keys combination
Alarm keypad with internal buzzer
Each key entry confirmed by beep and display
Supports events log viewing

Main Features

Low power consumption
Improved operation at low light locations
Simple and easy to operate
Slim profile keypad
Panic key included
Includes keys door

Technical

Operation voltage: 10-14V DC
Idle Current consumption: 19mA
Display: High efficiency 7-Segments LEDs
Status extra LEDs: Four (alarm, status, bypass & fire)
Hold down functions: Eight
Keypad keys: Silicon rubber with printed texts
Keypad back light Illumination: Full Illuminated keypad
Times back light: Included
Enclosure material: ABS
Enclosure color: White
Keys door: Included
Tamper switch: None
Wiring running distance: 120 -150 meters
Opacity level: IP-40
Operating temperature: -20 to +60º C
Dimensions: 168 x 100 x 30 mm, (6.6 x 3.9 x 1.2 “)
